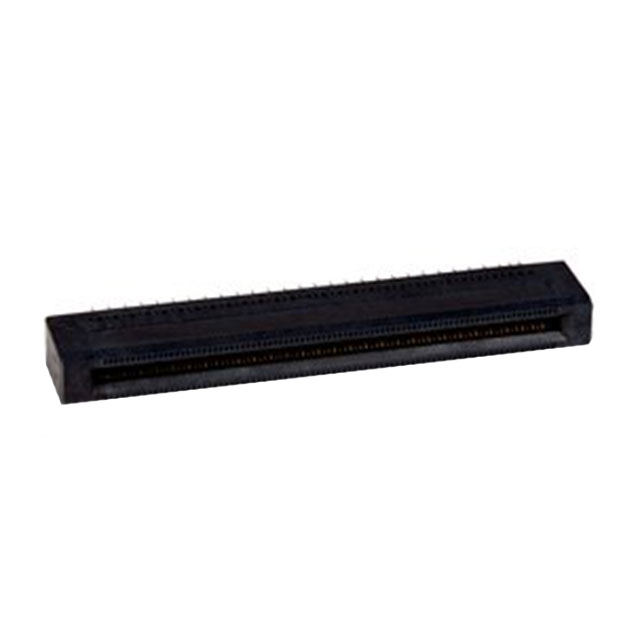

1P00-2000-KR

Active

CONN MICROTCA FMALE 170POS 0.029

Search across all available documentation for this part.

Active

CONN MICROTCA FMALE 170POS 0.029

Technical Specifications

Parameters and characteristics for this part

Specification	1P00-2000-KR

Card Thickness	0.055 in
Card Thickness	1.4 mm
Card Type	MicroTCA™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	170
Number of Positions/Bay/Row [custom]	85
Number of Rows	2
Pitch [x]	0.75 mm
Pitch [x]	0.029 in
Read Out	Dual
Termination	Press-Fit

CONN MICROTCA FMALE 170POS 0.029

Part	Gender	Number of Positions/Bay/Row [custom]	Mounting Type	Termination	Contact Finish	Card Type	Read Out	Number of Positions	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Material - Insulation	Pitch [x]	Pitch [x]	Color	Number of Rows
3M 1P00-2000-KR	Female	85	Through Hole	Press-Fit	Gold	MicroTCA™	Dual	170	Copper Alloy	0.76 Ám	30 Áin	0.055 in	1.4 mm	Liquid Crystal Polymer (LCP)	0.75 mm	0.029 in	Black	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

170 Position Female Connector MicroTCA™ Gold 0.029" (0.75mm) Black
