IBSB ADVANCED INSULATED BRAIDED

Search across all available documentation for this part.

Active

nVent

IBSB ADVANCED INSULATED BRAIDED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	20	$ 71.15

General part information

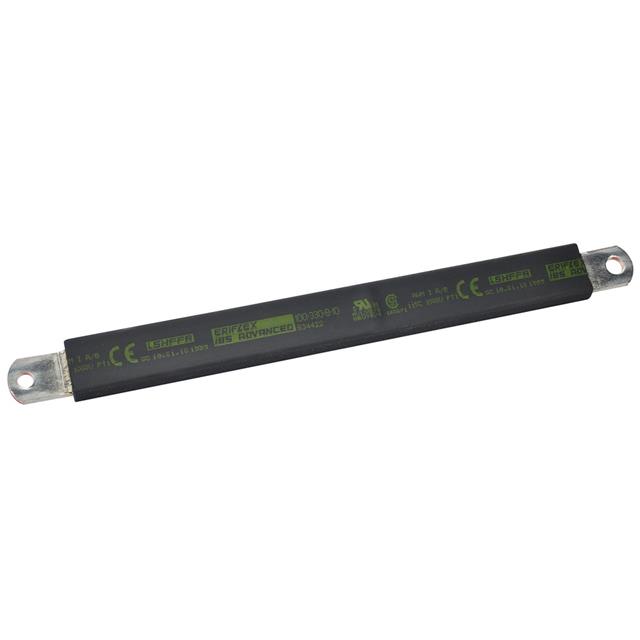

Flat, Busbar Ground Braid 0.940" (23.88mm) - Width X 2.1' (0.63m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	534425	- Series

Accessory Type	-	Insulator
Color	-	Natural
Diameter - Inside	-	0.006 in
Diameter - Inside	-	0.15 mm
Length	-	0.23 - 200 m
Length	-	0.5 - 328.1 ft
Length [x]	2.1 ft	0.3 - 82.02 ft
Length [x]	0.63 m	0.1 - 300 m
Material	Copper, Tinned	Copper, Tinned, Copper, Tin Plated, Copper, Polyester, Glass Filled, Polyamide (PA), Nylon, Copper, Tinned, PVC Coated
Material Flammability Rating	-	UL94 V-0
Number of Carriers	-	560 - 2848
Operating Temperature	-	70 °C
Size, Supplied	-	22.86 mm
Size, Supplied	-	13 mm
Size, Supplied	-	0.512 in
Size, Supplied	-	32 mm
Size, Supplied	-	Width
Size, Supplied	-	1.26 - 23 in
Size, Supplied	-	0.906 in
Size, Supplied	-	1.575 - 28 in
Size, Supplied	-	40.01 mm
Size, Supplied	-	1.102 "
Size, Supplied [y]	23.88 mm	0.9 - 30.48 mm
Size, Supplied [y]	0.94 in	0.591 - 1.2 in
Thickness	1.78 mm	1.5 - 200 mm
Thickness	0.07 in	0.059 - 0.2 in
Thickness	-	0.016 - 0.043 in
Thickness	-	0.4 - 1.1 mm
Type	Flat, Busbar	Flat, Busbar, Flat, Tubular, Sleeving, Insulated
Type Attributes	-	Convoluted - Braided
Wall Thickness	-	0.1 mm
Wall Thickness	-	0.004 in
Wire Gauge - Ends	-	1 - 8 AWG

IBSB ADVANCED INSULATED BRAIDED

Part	Size, Supplied [y]	Size, Supplied [y]	Wire Gauge - Ends	Thickness	Thickness	Type	Length	Length	Material	Number of Carriers	Size, Supplied [y]	Size, Supplied [custom]	Size, Supplied [custom]	Thickness [x]	Thickness [x]	Length [x]	Length [x]	Size, Supplied	Size, Supplied [x]	Size, Supplied	Size, Supplied	Size, Supplied [x]	Size, Supplied [x]
nVent 534412	0.79 in	20.07 mm	1 AWG	1.78 mm	0.07 in	Flat, Busbar	0.83 m	2.7 ft	Copper, Tinned
nVent 557280		0.9 "	2 AWG	2.54 mm	0.1 in	Flat	25 m	82 ft	Copper, Tinned	1980	22.86 mm
nVent 556600						Flat, Busbar	150 mm	0.5 ft	Copper, Tin Plated			13 mm	0.512 in	0.043 in	1.1 mm
nVent 534419	0.79 in	20.07 mm	2 aught AWG	1.78 mm	0.07 in	Flat, Busbar	0.83 m	2.7 ft	Copper, Tinned
nVent 557420			8 AWG			Tubular	25 m	82 ft	Copper	560
nVent 534425	0.94 in	23.88 mm		1.78 mm	0.07 in	Flat, Busbar			Copper, Tinned							2.1 ft	0.63 m
nVent 534438				1.78 mm	0.07 in	Flat, Busbar			Copper, Tinned							2.1 ft	0.63 m	32 mm	Width	1.26 in
nVent 556960	0.866 in	22 mm	2 AWG	2.01 mm	0.079 in	Flat, Busbar	50 cm	1.6 '	Copper, Tinned
nVent 556670				1.5 mm	0.059 in	Flat, Busbar			Copper, Tin Plated							0.3 ft	0.1 m			23 mm	0.906 in
nVent 563510						Flat, Busbar	0.25 m	0.8 ft	Copper, Tinned					0.016 in	0.4 mm							1.575 in	40.01 mm
