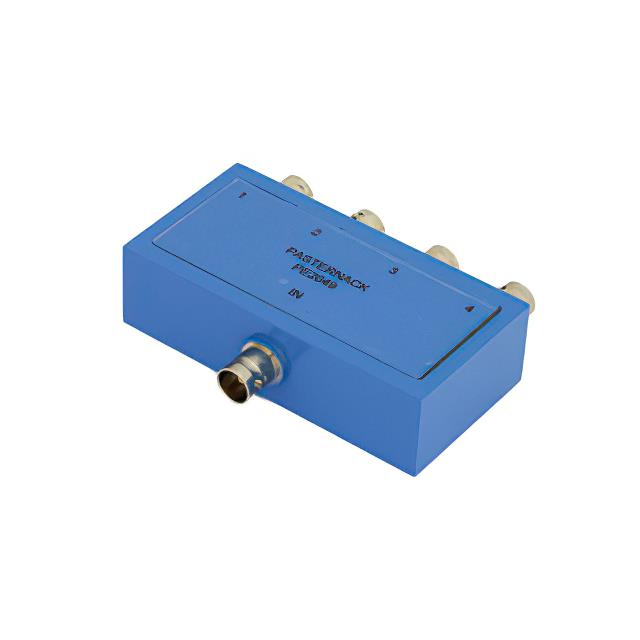

PE2049
ActivePasternack
75 OHM 4 WAY BNC POWER DIVIDER F
PE2049
ActivePasternack
75 OHM 4 WAY BNC POWER DIVIDER F
Description
General part information
PE2049
RF Power Divider 2 MHz ~ 500 MHz Isolation (Min) 22dB, 2° Imbalance (Max), 1.35 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE2049 |
|---|---|
| Frequency (Max) | 500 MHz |
| Frequency (Min) | 2 MHz |
| Imbalance (Max) | 2 ° |
| Insertion Loss | 1 dB |
| Isolation (Min) | 22 dB |
| Package / Case | Module |
| Size / Dimension Height | 0.93 in |
| Size / Dimension Length | 3.44 in |
| Size / Dimension Width | 1.75 in |
| VSWR (Max) | 1.35 |
