XUK1ARCNL2H60
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSORS XU, XUK, R
XUK1ARCNL2H60
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSORS XU, XUK, R
Description
General part information
XUK1ARCNL2H60

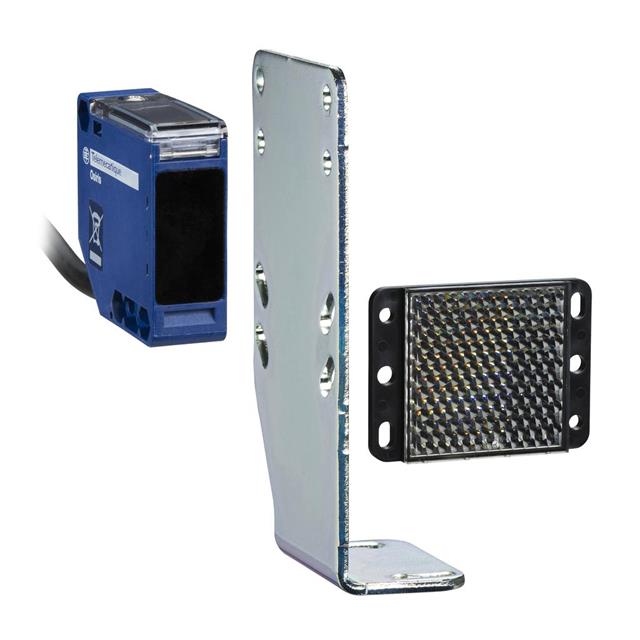

Reflective Optical Sensor 22.97' (7m) Relay
Technical Specifications
Parameters and characteristics for this part
| Specification | XUK1ARCNL2H60 |
|---|---|
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP65 |
| Light Source | Infrared |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Relay |
| Response Time | 25 ms |
| Sensing Distance | 22.97 ' |
| Sensing Method | Reflective |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
