TWAD397K015SBSZ0000
ActiveKYOCERA AVX

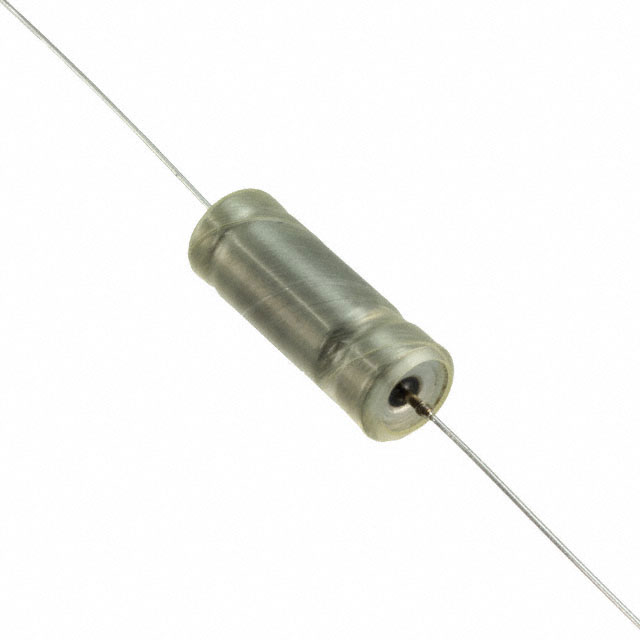

CAP TANT 390UF 10% 15V AXIAL
TWAD397K015SBSZ0000
ActiveKYOCERA AVX
CAP TANT 390UF 10% 15V AXIAL
Description
General part information
TWAD397K015SBSZ0000
390 µF Hermetically Sealed Tantalum Capacitors 15 V Axial, Can 1.7Ohm @ 120Hz
Technical Specifications
Parameters and characteristics for this part
| Specification | TWAD397K015SBSZ0000 |
|---|---|
| Capacitance | 390 µF |
| ESR (Equivalent Series Resistance) | 1.7 Ohm |
| Failure Rate Rating | Z, Non-ER |
| Features | Wet Tantalum, High Reliability |
| Manufacturer Size Code | D |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Ratings | COTS |
| Size / Dimension Diameter | 0.375 in, 0.406 in |
| Size / Dimension Length | 0.766 in |
| Tolerance | 10 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 15 V |
