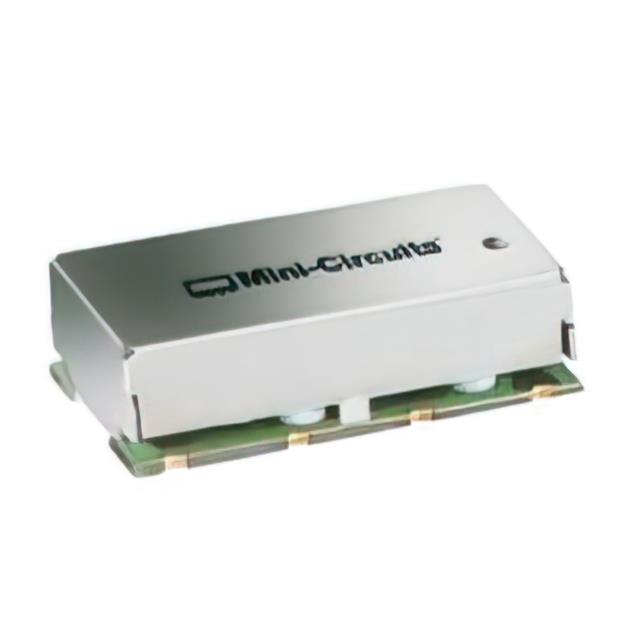

SXBP-1430+
ActiveMini-Circuits
RF FILTER BAND PASS 1.43GHZ 8SMD
SXBP-1430+
ActiveMini-Circuits
RF FILTER BAND PASS 1.43GHZ 8SMD
Description
General part information
SXBP-1430+
1.43GHz Center Frequency Band Pass RF Filter (Radio Frequency) 1.2GHz Bandwidth 1.5dB 8-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SXBP-1430+ |
|---|---|
| Bandwidth | 1.2 GHz |
| Filter Type | Band Pass |
| Frequency (Center) | 1.43 GHz |
| Height (Max) | 0.19 " |
| Insertion Loss | 1.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | No Lead, 8-SMD |
| Size / Dimension Length | 0.74 in |
| Size / Dimension Width | 0.44 in |
