Description
General part information

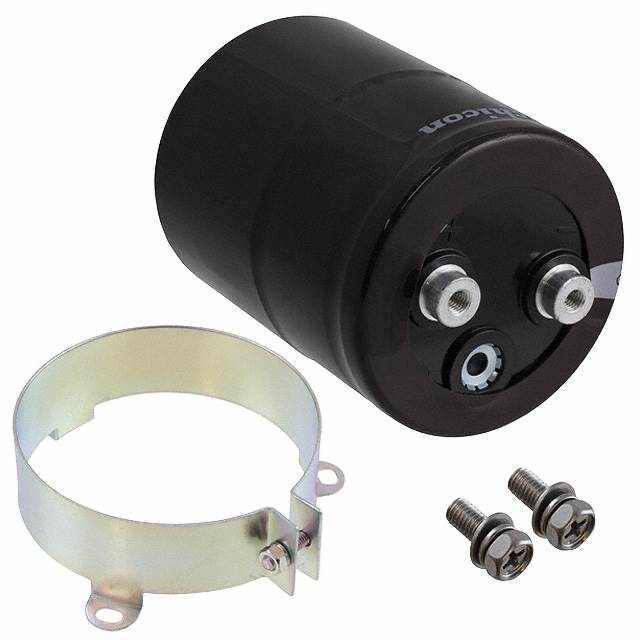

LQR2W182MSEG
1800 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LQR2W182MSEG |
|---|---|
| Applications | General Purpose |
| Capacitance | 1800 µF |
| Height - Seated (Max) | 3.268 in |
| Lead Spacing | 1.126 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 10.64 A, 7.9 A |
| Size / Dimension Diameter | 2.5 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
