ANT-5GW-IPW2-NP

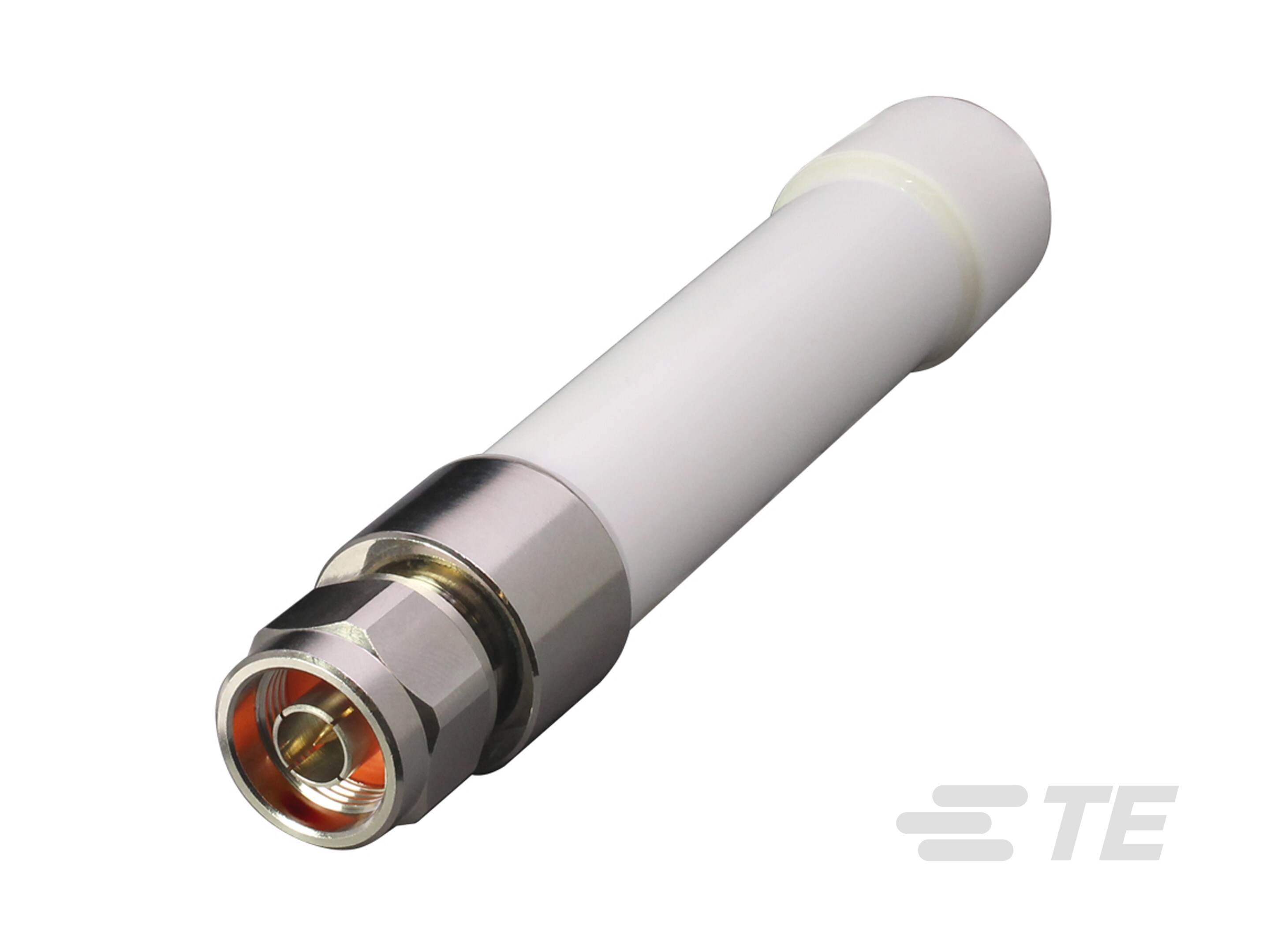

Baton/Stick Antenna, Wide Band, 5G / Cellular / LTE, External Mount, Stud/Screw/Lug Mount, N-type, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-5GW-IPW2-NP |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | LTE-M (Cat-M1), 5G, NB-IoT, LTE |
| Frequency (Center/Band) | 3.3GHz, 1.9GHz, 2.3GHz, 850MHz, 1.8GHz, 2.1GHz, 800MHz, 4.9GHz, 900MHz, 700MHz, 2.5GHz, 3.5GHz, 3.7GHz, 1.7GHz, 600MHz |
| Frequency (Center/Band) - 1 | 600 MHz |
| Frequency (Center/Band) - 10 | 2.3 GHz |
| Frequency (Center/Band) - 11 | 2.5 GHz |
| Frequency (Center/Band) - 12 | 3.3 GHz |
| Frequency (Center/Band) - 13 | 3.5 GHz |
| Frequency (Center/Band) - 14 | 3.7 GHz |
| Frequency (Center/Band) - 15 | 4.9 GHz |
| Frequency (Center/Band) - 2 | 700 MHz |
| Frequency (Center/Band) - 3 | 800 MHz |
| Frequency (Center/Band) - 4 | 850 MHz |
| Frequency (Center/Band) - 5 | 900 MHz |
| Frequency (Center/Band) - 6 | 1.7 GHz |
| Frequency (Center/Band) - 7 | 1.8 GHz |
| Frequency (Center/Band) - 8 | 1.9 GHz |
| Frequency (Center/Band) - 9 | 2.1 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 698 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 10) Maximum | 5 GHz |
| Frequency Range (Band 10) Minimum | 4.4 GHz |
| Frequency Range (Band 2) Maximum | 803 MHz |
| Frequency Range (Band 2) Minimum | 698 MHz |
| Frequency Range (Band 3) Maximum | 960 MHz |
| Frequency Range (Band 3) Minimum | 791 MHz |
| Frequency Range (Band 4) Maximum | 2.2 GHz |
| Frequency Range (Band 4) Minimum | 1.71 GHz |
| Frequency Range (Band 5) Maximum | 2.4 GHz |
| Frequency Range (Band 5) Minimum | 2.3 GHz |
| Frequency Range (Band 6) Maximum | 2.69 GHz |
| Frequency Range (Band 6) Minimum | 2.496 GHz |
| Frequency Range (Band 7) Maximum | 3.8 GHz |
| Frequency Range (Band 7) Minimum | 3.3 GHz |
| Frequency Range (Band 8) Maximum | 3.7 GHz |
| Frequency Range (Band 8) Minimum | 3.55 GHz |
| Frequency Range (Band 9) Maximum | 4.2 GHz |
| Frequency Range (Band 9) Minimum | 3.7 GHz |
| Gain | 1 dBi, 1.6 dBi, 3.7 dBi, 1.5 dBi, 1.2 dBi, 0.5 dBi, 2.4 dBi |
| Height (Max) | 5.2 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 10 |
| Power - Max | 2 VA |
| Return Loss | -12.7dB, -7.7dB, -10.2dB, -2.1dB, -11.7dB, -10.9dB, -2.2dB, -4.6dB, -6.8dB |
| Return Loss | -10.2 dB, -10.9 dB, -6.8 dB, -7.7 dB, -12.7 dB, -11.7 dB, -2.1 dB, -4.6 dB, -2.2 dB |
| RF Family/Standard | Cellular |
| Termination Type | N Type Male |
| VSWR | 3.9, 2.4, 1.9, 2.7, 8.1, 8.5, 1.6, 1.7, 1.8 |
