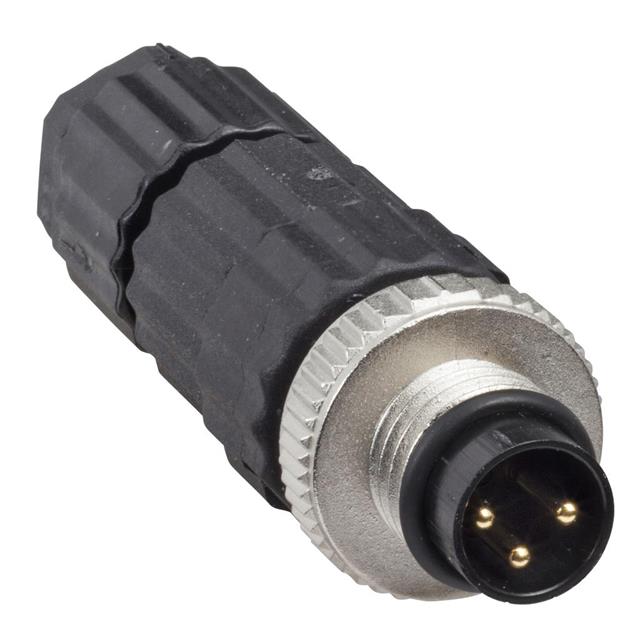

Specification	XZCC8MDM30V

Backshell Material, Plating	Plastic
Color	Black
Connector Type	Male Pins, Plug
Current Rating	4 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Plastic
Shell Size - Insert	M8-3
Shielding	Unshielded
Termination	Screw
Voltage Rating (AC)	60 VAC
Voltage Rating (DC)	75 VDC
