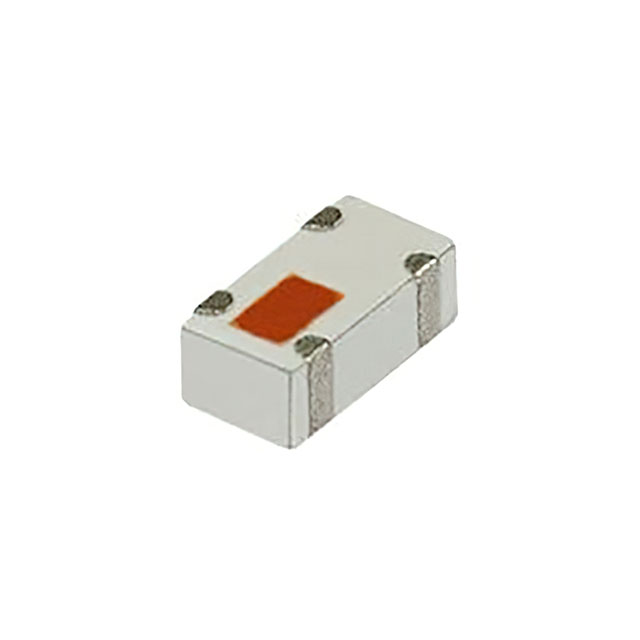

BLNK2-542R+
ActiveMini-Circuits
1:2 LTCC TRANSFORMER, 4900 - 595
BLNK2-542R+
ActiveMini-Circuits
1:2 LTCC TRANSFORMER, 4900 - 595
Description
General part information
BLNK2-542R+
RF Balun 4.9GHz ~ 5.95GHz 1:2 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | BLNK2-542R+ |
|---|---|
| Frequency Range (Max) | 5950 MHz |
| Frequency Range (Min) | 4.9 GHz |
| Impedance Ratio | 1:2 |
| Insertion Loss (Max) | 1 dB |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Phase Difference | 2.4 ° |
| Return Loss (Min) | 9.5 dB |
