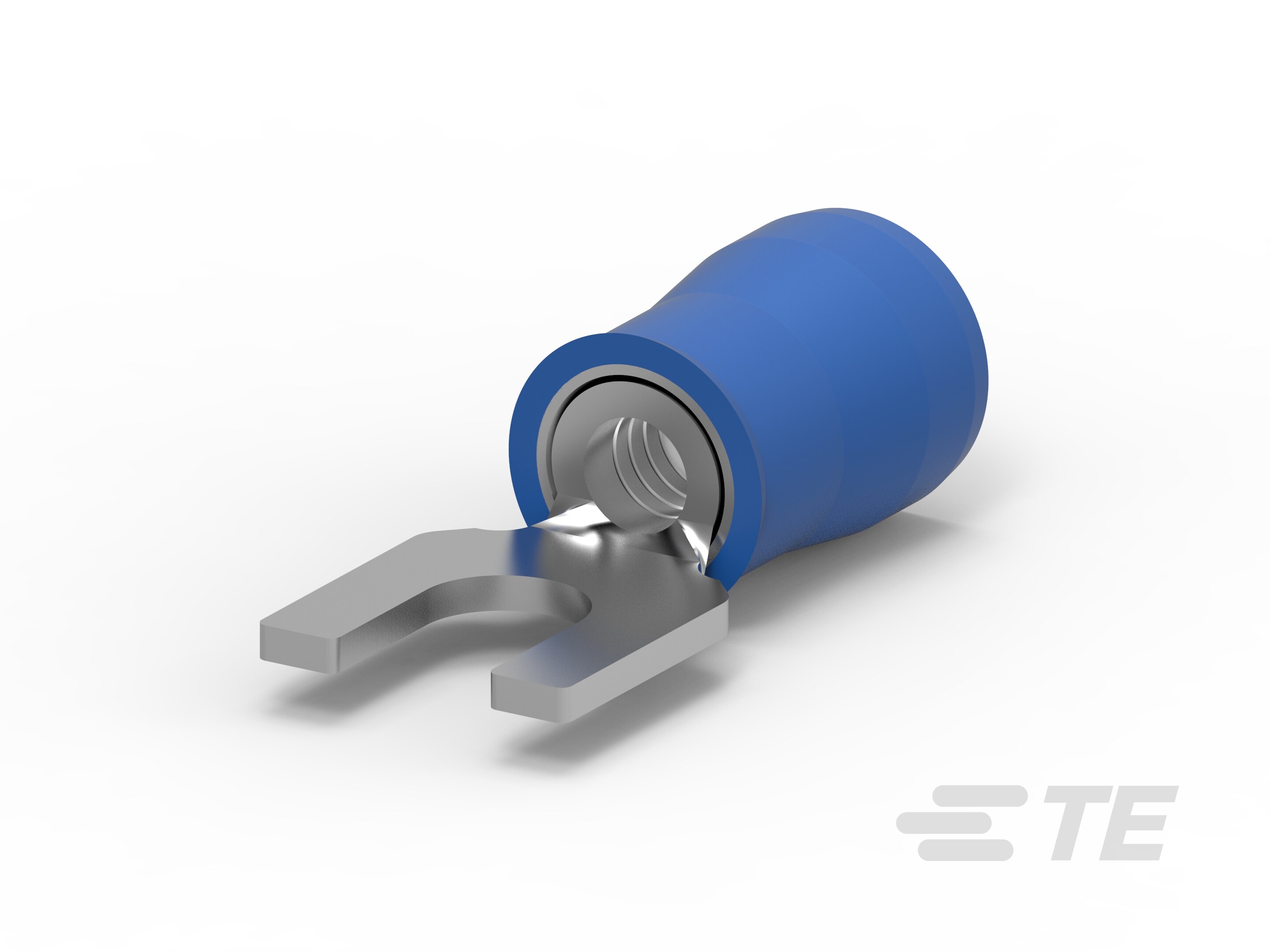

TERMINAL,PIDG SPD 16-14 6-35559

321233

Active
TE Connectivity AMP Connectors

CONN SPADE TERM 14-16AWG #8 BLU

Find alt
TERMINAL,PIDG SPD 16-14 6-35559

321233

Active
TE Connectivity AMP Connectors

CONN SPADE TERM 14-16AWG #8 BLU

Find alt

Description

General part information

321233

Spade Tongue Terminal, 16 – 14 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification321233
ColorBlue
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Length - Overall0.753 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size8 Stud
Terminal TypeStandard
TerminationCrimp
Width - Outer Edges0.297 in
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
