16CT
ActiveEaton - Electronics Division
SEMICONDUCTOR FUSE, GP.UK.690V.16A
16CT
ActiveEaton - Electronics Division
SEMICONDUCTOR FUSE, GP.UK.690V.16A
Description
General part information
16CT

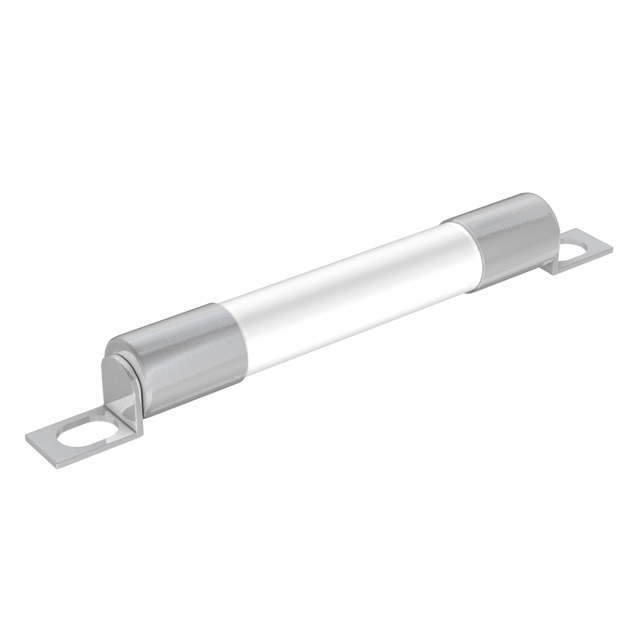

16A 690 VAC 500 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 16CT |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 200 kA |
| Current Rating | 16 A |
| Fuse Type | Cartridge |
| Melting I²t | 16 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 0.343 in |
| Size / Dimension Length | 2.157 in |
| Voltage Rating - AC | 690 V |
| Voltage Rating - DC | 500 V |
