121AT1503HC
ActiveGowanda Electronics

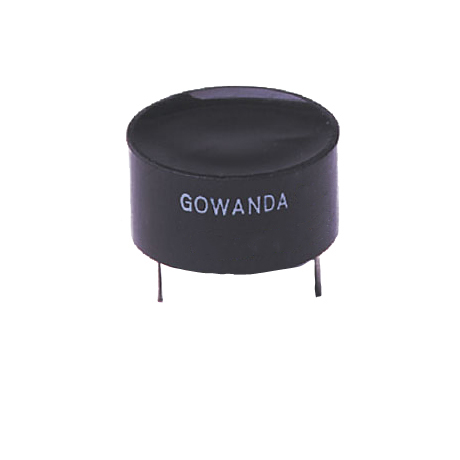

HORIZONTAL TOROIDAL POWER CHOKE
121AT1503HC
ActiveGowanda Electronics
HORIZONTAL TOROIDAL POWER CHOKE
Description
General part information
121AT1503HC
150 µH Shielded Toroidal Inductor 2.68 A 95mOhm Max Radial, Horizontal (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | 121AT1503HC |
|---|---|
| Current - Saturation (Isat) | 4.8 A |
| Current Rating | 2.68 A |
| DC Resistance (DCR) (Max) | 95 mOhm |
| Frequency - Self Resonant | 1 MHz |
| Height - Seated (Max) | 0.55 in |
| Inductance | 150 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Horizontal (Open), Radial |
| Package Name | Radial |
| Shielding | Shielded |
| Size / Dimension Diameter | 0.95 in |
| Tolerance | 10 % |
| Type | Toroidal |
