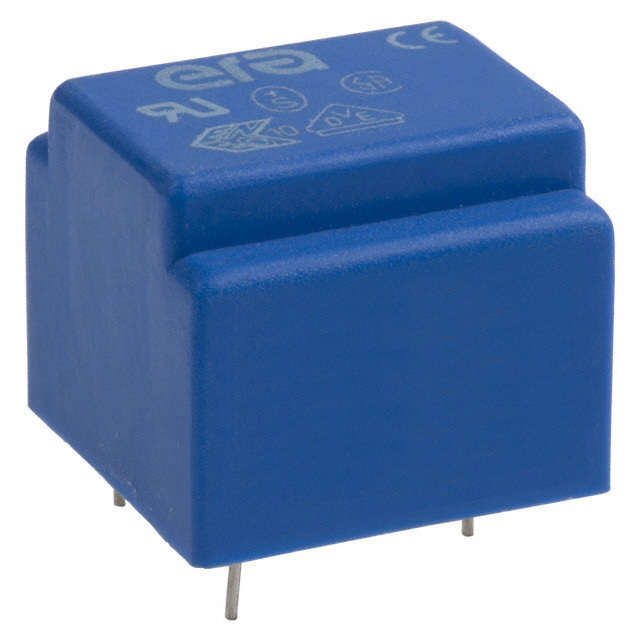

BV020-5384.0
ObsoletePulse Electronics
PWR XFMR LAMINATED 0.5VA CHAS MT
BV020-5384.0
ObsoletePulse Electronics
PWR XFMR LAMINATED 0.5VA CHAS MT
Description
General part information
BV020-5384.0
PWR XFMR LAMINATED 0.5VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | BV020-5384.0 |
|---|---|
| Center Tap | No |
| Current - Output (Max) | 42 mA |
| Height - Seated (Max) | 19 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 0.5 W |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 22 mm |
| Size / Dimension Width | 23 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Primary | 230 V |
| Voltage - Secondary (Full Load) | 12 V |
| Weight | 0.077 lb |
