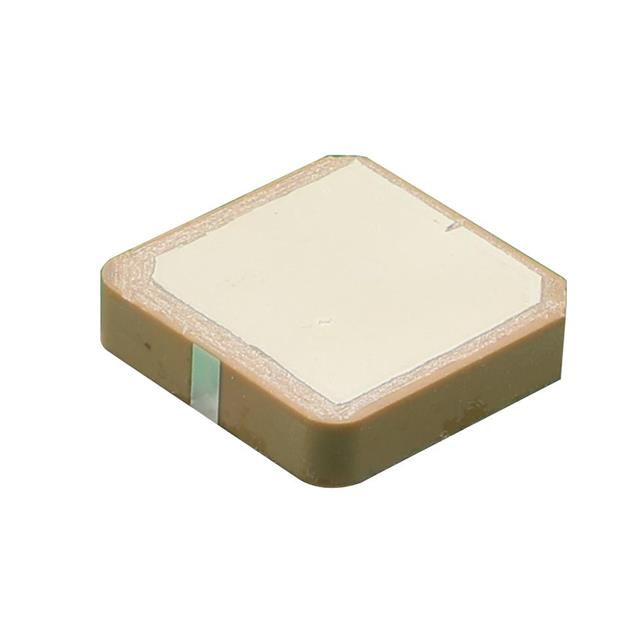

YCGS005AA
RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS Ceramic Patch Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | YCGS005AA |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS, Galileo, GLONASS, BEIDOU, GNSS |
| Frequency (Center/Band) | 1.588 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.602 GHz |
| Frequency Range (Min) | 1.575 GHz |
| Gain | 3 dBi |
| Height (Max) | 0.157 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | Solder |
| VSWR | 2 |
