Specification	1469028-1

Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	30 µin
Ground Contacts (Typical)	20
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Columns	10
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	4
Pitch	0.098 in
Signal Contacts (Typical)	40
Termination	Press-Fit

Z-PACK HM-Zd Series

Part	Connector Type	Ground Contacts (Typical)	Signal Contacts (Typical)	Mounting Type	Termination	Connector Usage	Pitch	Connector Style	Number of Positions Loaded	Number of Rows	Number of Positions	Contact Finish	Contact Finish Thickness	Number of Columns	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Current Rating
TE Connectivity AMP Connectors 6469076-1	Blades Header Male Pins	20	40	Through Hole	Press-Fit	Backplane	0.098 in	High Speed	All	4	40	Gold	30 µin	10
TE Connectivity AMP Connectors 6469286-1	Female Sockets Receptacle	48	96	Board Edge Right Angle Through Hole	Press-Fit	Daughtercard	0.098 in	High Speed	All	8	144	Gold	30 µin	12
TE Connectivity AMP Connectors 6469083-3	Header Male Pins			Through Hole	Press-Fit	Backplane	0.098 in	High Speed	All	6	60	Gold	50 µin	10	UL94 V-0	105 °C	-65 °C	250 V	0.7 A
TE Connectivity AMP Connectors 6469081-1	Female Sockets Receptacle			Board Edge Right Angle Through Hole	Press-Fit	Daughtercard	0.098 in	High Speed	All	6	60	Gold	30 µin	10	UL94 V-0	105 °C	-65 °C	250 V	0.7 A
TE Connectivity AMP Connectors 6469025-2	Blades Header Male Pins	20	40	Through Hole	Press-Fit	Backplane	0.098 in	High Speed	All	4	60	Gold	30 µin	10	UL94 V-0	105 °C	-65 °C	250 V	0.7 A
TE Connectivity AMP Connectors 6469025-1	Blades Header Male Pins	20	40	Through Hole	Press-Fit	Backplane	0.098 in	High Speed	All	4	60	Gold	30 µin	10	UL94 V-0	105 °C	-65 °C	250 V	0.7 A

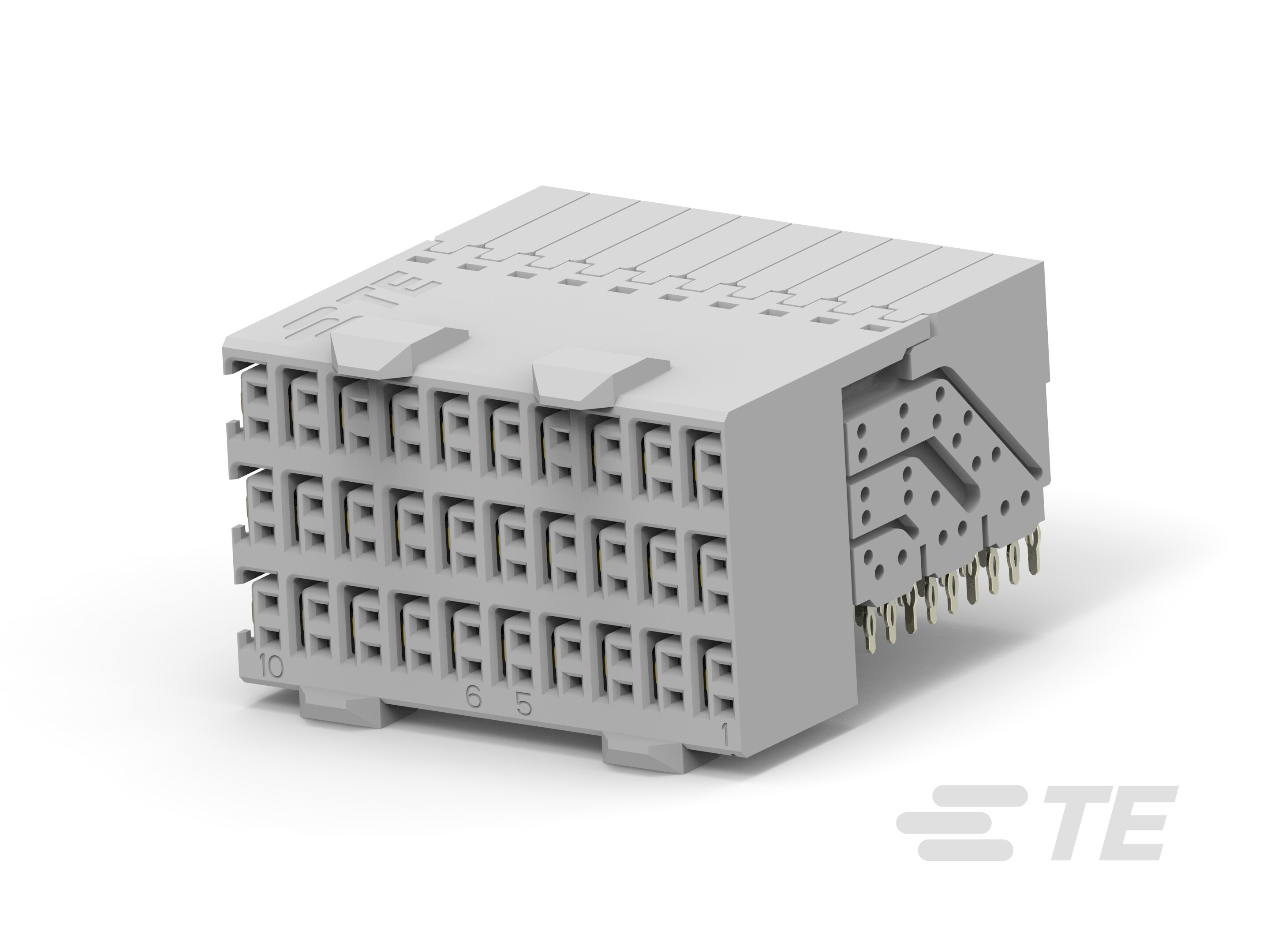

TE Connectivity AMP Connectors 1469081-2	Female Sockets Receptacle			Board Edge Right Angle Through Hole	Press-Fit	Daughtercard	0.098 in	High Speed	All	6	90	Gold	20 µin	10
TE Connectivity AMP Connectors 1469025-1	Blades Header Male Pins	20	40	Through Hole	Press-Fit	Backplane	0.098 in	High Speed	All	4	60	Gold	30 µin	10	UL94 V-0	105 °C	-65 °C	250 V	0.7 A
TE Connectivity AMP Connectors 6469083-1	Blades Header Male Pins			Through Hole	Press-Fit	Backplane	0.098 in	High Speed	All	6	60	Gold	30 µin	10	UL94 V-0	105 °C	-65 °C	250 V	0.7 A
TE Connectivity AMP Connectors 6469085-1	Blades Header Male Pins	30	60	Through Hole	Press-Fit	Backplane	0.098 in	High Speed	All	6	90	Gold	30 µin	10	UL94 V-0	105 °C	-65 °C	250 V	0.7 A
