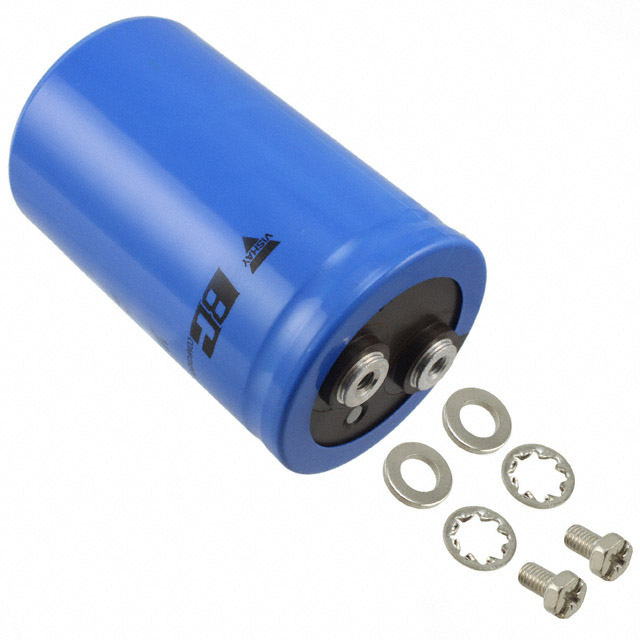

Specification	MAL210435332E3

Applications	General Purpose
Capacitance	3300 µF
ESR (Equivalent Series Resistance)	42 mOhm
Height - Seated (Max)	4.339 in
Impedance	26 mOhms
Lead Spacing	1.122 in
Lifetime	5000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Ripple Current	15.15 A
Size / Dimension Diameter	2.559 in
Tolerance	20 %
Voltage - Rated	350 V
