63278-1
ActiveTE Connectivity AMP Connectors

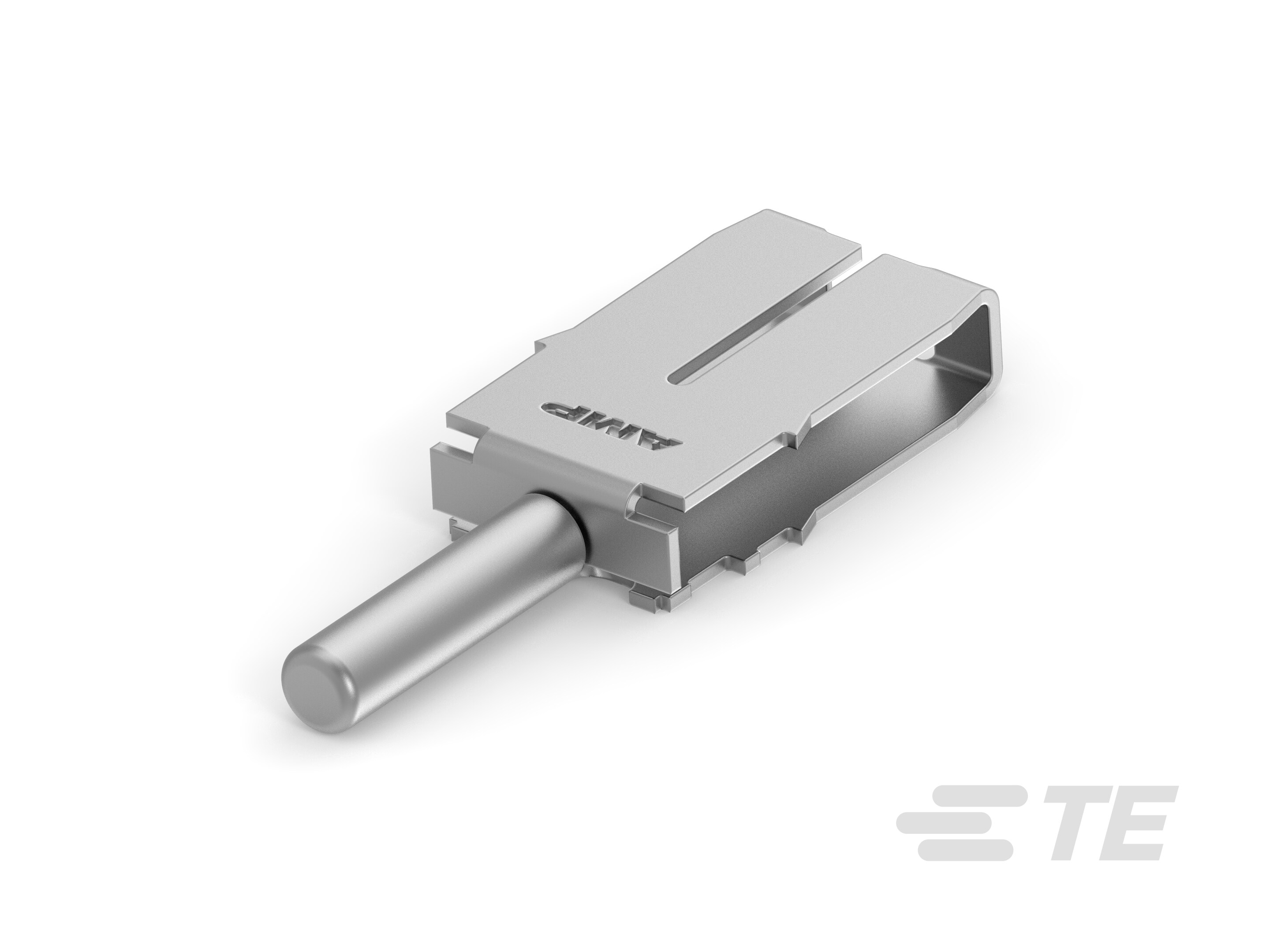

MAG-MATE 090 PIN 19-17 016TPBR
63278-1
ActiveTE Connectivity AMP Connectors
MAG-MATE 090 PIN 19-17 016TPBR
Description
General part information
MAG-MATE 500 Series
Pin, .86 – 1.15 mm Magnet Wire, 19.5 – 17 AWG Magnet Wire, Insulation Displacement (IDC), Tin Plating, MAG-MATE 500, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 63278-1 |
|---|---|
| Size | 4 |
| Style | 500 |
| Terminal Type | Box IDC |
| Termination | Pin |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 17 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Application Specification - Standard MAG-MATE Series 500 12.7 mm [.500 in.] Box Height Terminals
Qualification Test Report - MAG-MATE* Standard Series Terminal 0.500 Box Height
MAG-MATE Wire Interconnect System
Magnet Wire Terminals & Splices
Product Specification - Terminal, MAG-MATE, Standard Series, .500 Box Height
ENG_CD_63278_F.pdf
Datasheet
63278-1 | Datasheet
