2443729-7
ActiveTE Connectivity AMP Connectors

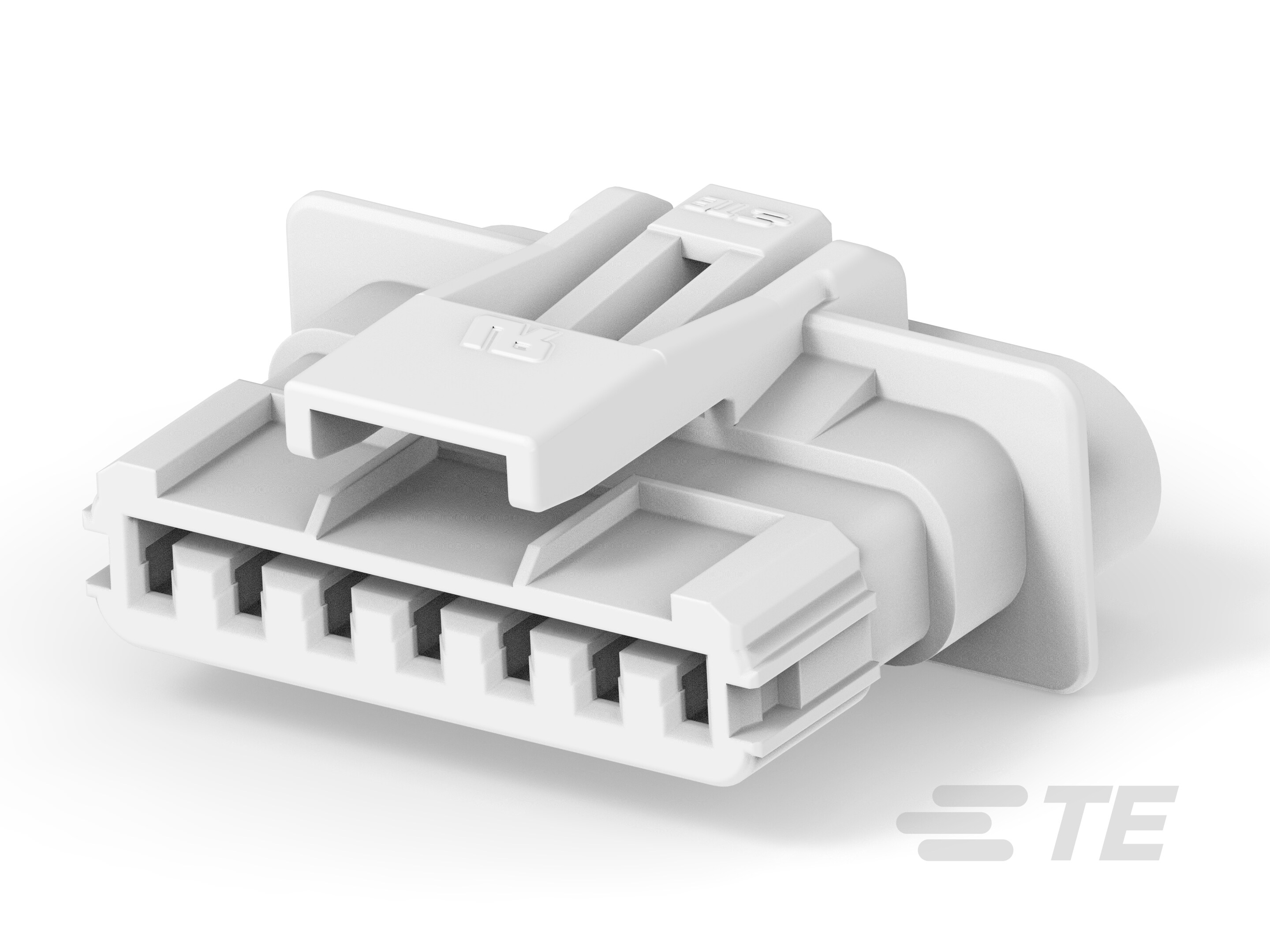

PLUG HOUSING SDL2.5 WATERPROOF 7PIN
2443729-7
ActiveTE Connectivity AMP Connectors
PLUG HOUSING SDL2.5 WATERPROOF 7PIN
Description
General part information
2443729-7
7 Position, Plug, Housing, Wire-to-Wire, UL 94V-0, 2.5 mm [.098 in] Centerline, 1 Row, 250 VAC, Sealable, Wire & Cable, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 2443729-7 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.098 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Sealing Performance Validation for SDL2.5 Waterproof Connector
Waterproof Signal Double Lock Connector System - Application Specification
SDL2.5 water proof connector
Datasheet
SDL2.5 Waterproof Connectors
ENG_CD_2443729_A1.pdf
Product Specification - Waterproof Signal Double Lock and Twist and Lock Connector System
2443729-7 | Datasheet
