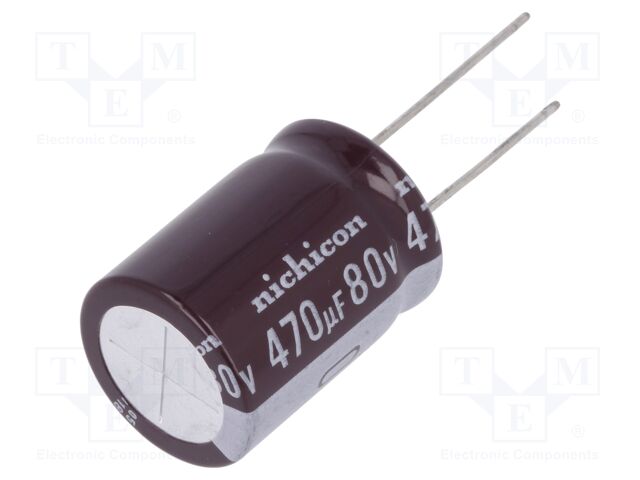

Specification	UPM1K471MHD6

Applications	Automotive
Capacitance	470 µF
Height - Seated (Max)	1.063 in
Impedance	80 mOhms
Lead Spacing	0.295 in
Lifetime	5000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Polarization	Polar
Ratings	AEC-Q200
Ripple Current	1.32 A, 1.65 A
Size / Dimension Diameter	0.709 in
Tolerance	20 %
Voltage - Rated	80 Vp-p

upm Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Mounting Type	Applications	Size / Dimension Diameter	Ripple Current	Lead Spacing	Voltage - Rated	Ratings	Height - Seated (Max)	Impedance	Polarization	Lifetime	Tolerance	Capacitance
Nichicon UPM1K471MHD	-55 °C	105 °C	Can Radial	Through Hole	Automotive	0.63 in	1.43 A 1.79 A	0.295 in	80 Vp-p	AEC-Q200	1.319 in	69 mOhm	Polar	5000 Hrs	20 %	470 µF
Nichicon UPM1H221MHD6	-55 °C	105 °C	Can Radial	Through Hole	Automotive	0.492 in	670 mA 920 mA	0.197 in	50 V	AEC-Q200	0.669 in	80 mOhms	Polar	5000 Hrs	20 %	220 µF
Nichicon UPM1C272MHD6TN	-55 °C	105 °C	Can Radial	Through Hole	Automotive	0.63 in	1.97 A 2.19 A	0.295 in	16 V	AEC-Q200	1.063 in	30 mOhm	Polar	5000 Hrs	20 %	2700 µF
Nichicon UPM1J181MHD6TN	-55 °C	105 °C	Can Radial	Through Hole	Automotive	0.63 in	1.05 A 750 mA	0.295 in	63 V	AEC-Q200	0.669 in	80 mOhms	Polar	5000 Hrs	20 %	180 µF
Nichicon UPM1V271MHD6	-55 °C	105 °C	Can Radial	Through Hole	Automotive	0.492 in	690 mA 920 mA	0.197 in	35 V	AEC-Q200	0.669 in	80 mOhms	Polar	5000 Hrs	20 %	270 µF
Nichicon UPM1A821MHD6	-55 °C	105 °C	Can Radial	Through Hole	Automotive	0.492 in	780 mA 920 mA	0.197 in	10 V	AEC-Q200	0.669 in	80 mOhms	Polar	5000 Hrs	20 %	820 µF
Nichicon UPM0J562MHD6TN	-55 °C	105 °C	Can Radial	Through Hole	Automotive	0.709 in	1.78 A 1.98 A	0.295 in	6.3 V	AEC-Q200	0.866 in	30 mOhm	Polar	5000 Hrs	20 %	5600 µF
Nichicon UPM1V222MHD6	-55 °C	105 °C	Can Radial	Through Hole	Automotive	0.709 in	2.44 A 2.72 A	0.295 in	35 V	AEC-Q200	1.319 in	23 mOhm	Polar	5000 Hrs	20 %	2200 ĄF
Nichicon UPM1V681MHD	-55 °C	105 °C	Can Radial	Through Hole	Automotive	0.492 in	1.41 A 1.7 A	0.197 in	35 V	AEC-Q200	1.063 in	36 mOhms	Polar	5000 Hrs	20 %	680 µF
Nichicon UPM1A272MHD6TN	-55 °C	105 °C	Can Radial	Through Hole	Automotive	0.63 in	1.56 A 1.74 A	0.295 in	10 V	AEC-Q200	0.866 in	35 mOhms	Polar	5000 Hrs	20 %	2700 µF
