Specification	OD4010-05LB

Air Flow	4.7 CFM
Approval Agency	cURus, UR, CE, TUV
Bearing Type	Ball
Current Rating	60 mA
Fan Type	Tubeaxial
Lifetime	60000 Hrs
Material - Blade	PBT, Polybutylene Terephthalate
Material - Frame	Polybutylene Terephthalate (PBT)
Noise	20.1 dB
Operating Temperature (Max)	149 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	300 mW
RPM	4000 RPM
Size / Dimension Height	40 mm
Size / Dimension Length	40 mm
Size / Dimension Shape	Square
Static Pressure	0.07 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	5 VAC
Voltage Range (Max)	5.5 VDC
Voltage Range (Min)	4 VDC
Weight	0.441 lb
Width	10.5 mm

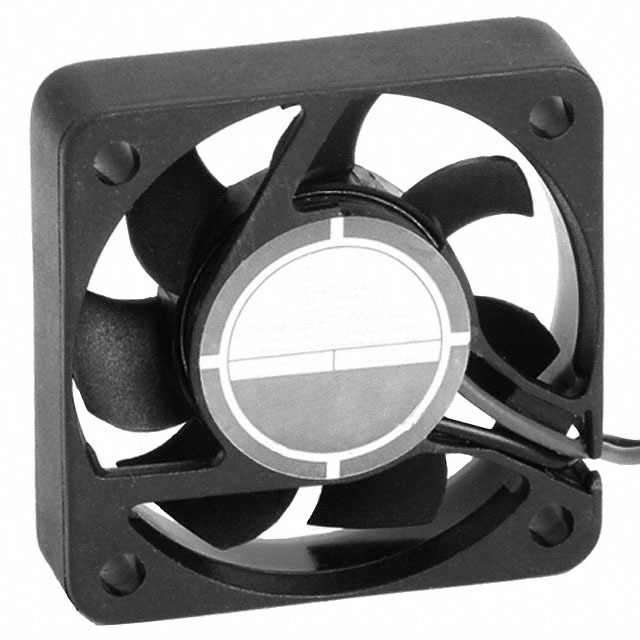

OD4010 Series

...

Part	Voltage - Rated	RPM	Approval Agency	Noise	Operating Temperature (Min)	Operating Temperature (Max)	Power (Watts)	Termination Leads Count	Termination Type	Termination	Static Pressure	Features	Air Flow	Fan Type	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Weight	Bearing Type	Width	Material - Frame	Material - Blade	Voltage Range (Max)	Voltage Range (Min)	Current Rating	Lifetime
ORION FANS OD4010-24LB01A	24 VAC	4000 RPM	CE cURus TUV UR	20.1 dB	-4 °F	149 °F	730 mW	3	Wire Leads	3 Wire Leads	0.07 in H2O	Auto Restart Speed Sensor (Tach)	4.7 CFM	Tubeaxial	40 mm	Square	40 mm	0.441 lb	Ball	10.5 mm	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	26.4 VDC	21.6 VDC	30 mA	60000 Hrs
ORION FANS OD4010-24LB	24 VAC	4000 RPM	CE cURus TUV UR	20.1 dB	-4 °F	149 °F	730 mW	2 leads	Wire Leads	2 Wire Leads	0.07 in H2O	Auto Restart	4.7 CFM	Tubeaxial	40 mm	Square	40 mm	0.441 lb	Ball	10.5 mm	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	26.4 VDC	21.6 VDC	30 mA	60000 Hrs
ORION FANS OD4010-12LS	12 VAC	4000 RPM	CE cURus TUV UR	20.1 dB	-4 °F	149 °F	500 mW	2 leads	Wire Leads	2 Wire Leads	0.07 in H2O	Auto Restart	4.7 CFM	Tubeaxial	40 mm	Square	40 mm	0.441 lb	Sleeve	10.5 mm	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	13.2 VDC	10.8 VDC	40 mA	60000 Hrs
ORION FANS OD4010-24HSS01A	24 VAC	8000 RPM	CE cURus TUV UR	33.2 dB	14 °F	158 °F	1.45 W	3	Wire Leads	3 Wire Leads	0.2 in H2O	Auto Restart Speed Sensor (Tach)	9.2 CFM	Tubeaxial	40 mm	Square	40 mm	0.441 lb	Sealed Sleeve	10.5 mm	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	26.4 VDC	21.6 VDC	60 mA	50000 Hrs
ORION FANS OD4010-05HS02A	5 VAC	8000 RPM	cURus TUV	33.2 dB	14 °F	158 °F		3	Wire Leads	3 Wire Leads	0.2 in H2O	Auto Restart Locked Rotor Sensor	9.2 CFM	Tubeaxial	40 mm	Square	40 mm	0.441 lb	Sleeve	10.5 mm	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	5.5 VDC	4 VDC	70 mA	50000 Hrs
ORION FANS OD4010-24MS01A	24 VAC	6000 RPM	CE cURus TUV UR	26.3 dB	-4 °F	149 °F	1.2 W	3	Wire Leads	3 Wire Leads	0.12 in H2O	Auto Restart Speed Sensor (Tach)	7.2 CFM	Tubeaxial	40 mm	Square	40 mm	0.441 lb	Sleeve	10.5 mm	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	26.4 VDC	21.6 VDC	50 mA	60000 Hrs
ORION FANS OD4010-05MB01A	5 VAC	6000 RPM	CE cURus TUV UR	26.3 dB	-4 °F	149 °F		3	Wire Leads	3 Wire Leads	0.12 in H2O	Auto Restart Speed Sensor (Tach)	7.2 CFM	Tubeaxial	40 mm	Square	40 mm	0.441 lb	Ball	10.5 mm	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	5.5 VDC	4 VDC	70 mA	60000 Hrs
ORION FANS OD4010-12MSS01A	12 VAC	4800 RPM	cURus	20 dB	14 °F	158 °F		3	Wire Leads	3 Wire Leads	0.08 in H2O	Auto Restart Speed Sensor (Tach)	6 CFM	Tubeaxial	40 mm	Square	40 mm	0.441 lb	Sealed Sleeve	10.5 mm	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	14 V	7 V	0.08 A	50000 Hrs
ORION FANS OD4010-12HHSS02A	12 VAC							3	Wire Leads	3 Wire Leads		Locked Rotor Sensor		Tubeaxial	40 mm	Square	40 mm	0.441 lb	Sealed Sleeve	10.5 mm	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate
ORION FANS OD4010-12LLSS	12 VAC		cURus TUV					2 leads	Wire Leads	2 Wire Leads				Tubeaxial	40 mm	Square	40 mm	0.441 lb	Sealed Sleeve	10.5 mm	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate
