761KS17
ActiveSwitchcraft Inc.

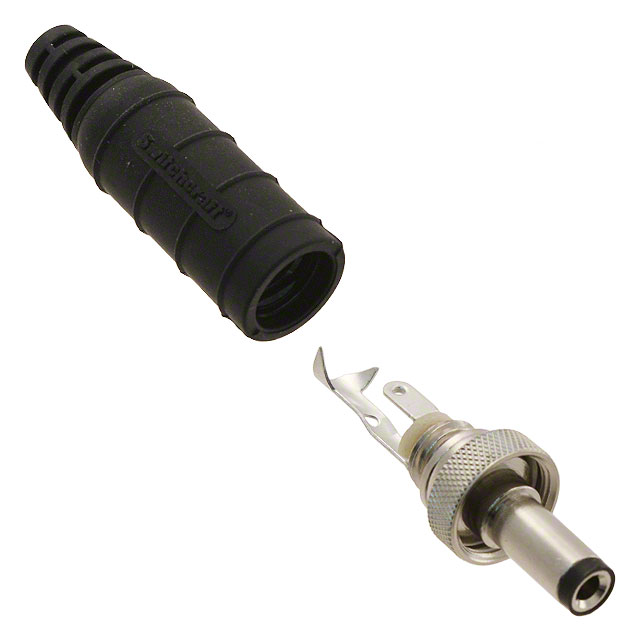

CONN PWR PLUG 2.5X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
761KS17
ActiveSwitchcraft Inc.
CONN PWR PLUG 2.5X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 761KS17 | 761K Series |
|---|---|---|
| - | - | |
| Actual Diameter [custom] | 2.5 mm | 2.5 mm |
| Actual Diameter [custom] | 0.098 " | 0.098 " |
| Actual Diameter [custom] | 0.217 " | 0.217 " |
| Actual Diameter [custom] | 5.5 mm | 5.5 mm |
| Body Color | Silver, Black | Silver, Black |
| Body Material | Copper Alloy | Copper Alloy |
| Connector Type | Plug | Plug |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Material - Plating | Tin | Tin |
| Current Rating (Amps) | 5 A | 5 A |
| Features | Cable Clamp, Thread Lock | Cable Clamp, Thread Lock |
| Gender | Female | Female |
| Housing Material | Thermoplastic | Thermoplastic |
| Includes | 1 Connector, 1 Handle | 1 Connector, 1 Handle |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm | 2.5 - 5.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " | 0.098 - 0.217 " |
| Ingress Protection | IP68 | IP68 |
| Insulation Color | Black | Black |
| Internal Switch(s) | False | False |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 | 2 |
| Number of Positions/Contacts [custom] | 2 | 2 |
| Shielding | Unshielded | Unshielded |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) |
| Voltage - Rated | 30 V | 30 V |
761K Series
CONN PWR PLUG 2.5X5.5MM SOLDER
| Part | Gender | Shielding | Connector Type | Termination | Contact Material | Contact Material - Plating | Housing Material | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Body Material | Ingress Protection | Insulation Color | Current Rating (Amps) | Includes | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Body Color | Voltage - Rated | Mounting Type | Internal Switch(s) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 761KS17 | Female | Unshielded | Plug | Solder Eyelet(s) | Copper Alloy | Tin | Thermoplastic | 2 | 2 | Copper Alloy | IP68 | Black | 5 A | 1 Connector, 1 Handle | 2.5 mm | 0.098 " | 0.217 " | 5.5 mm | 2.5 mm, 5.5 mm | 0.098 ", 0.217 " | Black, Silver | 30 V | Free Hanging (In-Line) | Cable Clamp, Thread Lock | |
Switchcraft Inc. 761KS15 | Female | Unshielded | Plug | Solder Eyelet(s) | Copper Alloy | Tin | Thermoplastic | 2 | 2 | Copper Alloy | IP68 | Black | 5 A | 1 Connector, 1 Handle | 2.5 mm | 0.098 " | 0.217 " | 5.5 mm | 2.5 mm, 5.5 mm | 0.098 ", 0.217 " | Black, Silver | 30 V | Free Hanging (In-Line) | Cable Clamp, Thread Lock | |
Switchcraft Inc. 761KH | |||||||||||||||||||||||||
Switchcraft Inc. 761KS12 | Female | Unshielded | Plug | Solder Eyelet(s) | Copper Alloy | Tin | Thermoplastic | 2 | 2 | Copper Alloy | IP68 | Black | 5 A | 1 Connector, 1 Handle | 2.5 mm | 0.098 " | 0.217 " | 5.5 mm | 2.5 mm, 5.5 mm | 0.098 ", 0.217 " | Black, Silver | 30 V | Free Hanging (In-Line) | Cable Clamp, Thread Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.51 | |
| 10 | $ 8.84 | |||
| 25 | $ 7.98 | |||
| 50 | $ 7.41 | |||
| 100 | $ 6.88 | |||
| 300 | $ 6.15 | |||
| 500 | $ 5.85 | |||
| 1000 | $ 5.47 | |||
Description
General part information
761K Series
Power Barrel Connector Plug 2.50mm ID (0.098"), 5.50mm OD (0.217") Free Hanging (In-Line)
