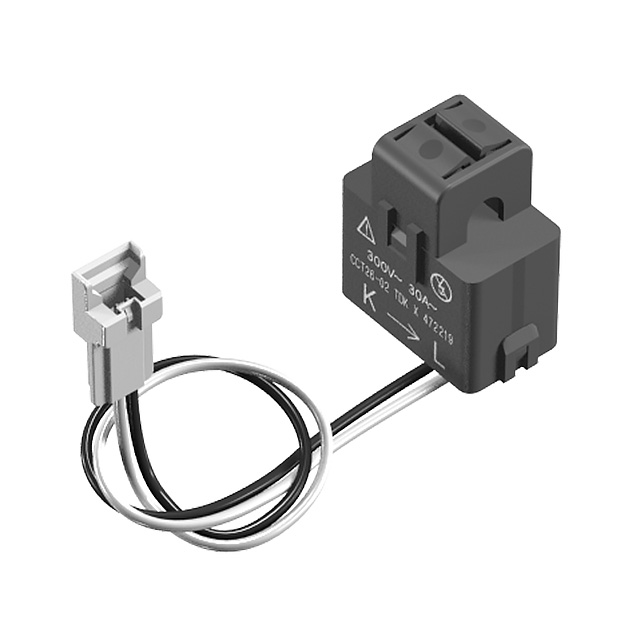

CCT261631-30-06-02
ActiveTDK Corporation
CURR SENSE XFMR 30A CHAS MNT
CCT261631-30-06-02
ActiveTDK Corporation
CURR SENSE XFMR 30A CHAS MNT
Description
General part information
CCT261631-30-06-02
30 A Current Sense Transformer 50/60Hz 492Ohm Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CCT261631-30-06-02 |
|---|---|
| Current Rating | 30 A |
| Current Ratio | 3000 ratio |
| DC Resistance (DCR) | 492 Ohm |
| Frequency Range | 60Hz, 50Hz |
| Frequency Range (Max) | 60 Hz |
| Frequency Range (Min) | 50 Hz |
| Height - Seated (Max) | 1.26 in |
| Mounting Type | Chassis Mount |
| Size / Dimension Length | 1.126 in |
| Size / Dimension Width | 0.728 in |
| Termination Style | Wire Leads with Connector |
| Type | Non-Invasive (Split Core) |
| Weight | 0.133 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
