Description
General part information

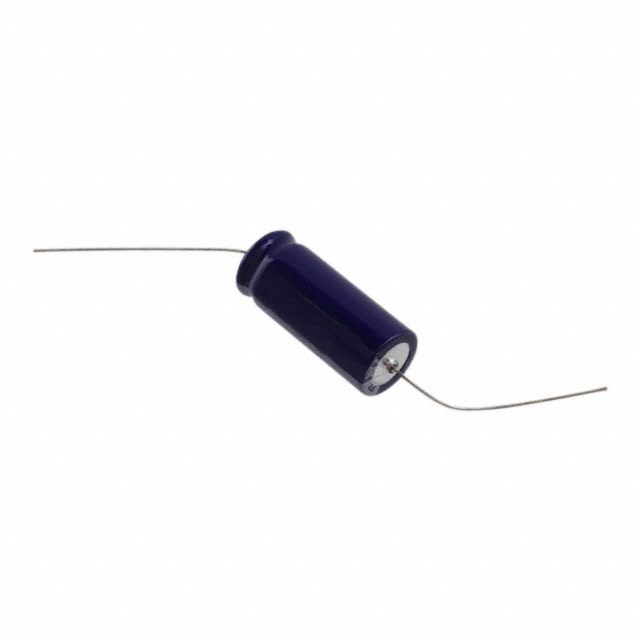

TVX2C470MCD
47 µF 160 V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | TVX2C470MCD |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Ripple Current | 230 mA, 368 mA |
| Size / Dimension Diameter | 0.512 in |
| Size / Dimension Length | 1.319 in |
| Tolerance | 20 % |
| Voltage - Rated | 160 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
