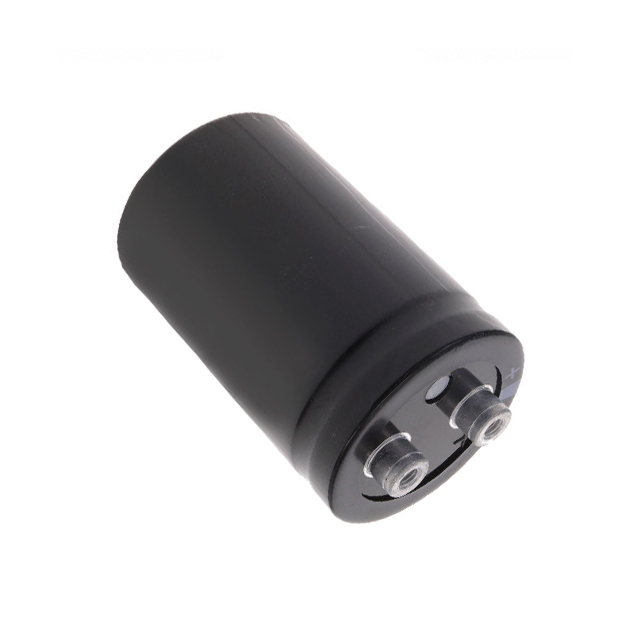

Specification	B43726B5338M608

Applications	General Purpose
Capacitance	3.3 mF
ESR (Equivalent Series Resistance)	28 mOhm
Height - Seated (Max)	4.201 in
Impedance	40 mOhm
Lead Spacing	1.248 in
Lifetime	12000 Hrs
Mounting Type	Chassis, Stud Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	20.4 A
Size / Dimension Diameter	3.028 in
Tolerance	20 %
Voltage - Rated	450 V
