XBP08-DPUIT-024
ObsoleteDigi International
RF TXRX MOD ISM<1GHZU.FL TH
XBP08-DPUIT-024
ObsoleteDigi International
RF TXRX MOD ISM<1GHZU.FL TH
Description
General part information

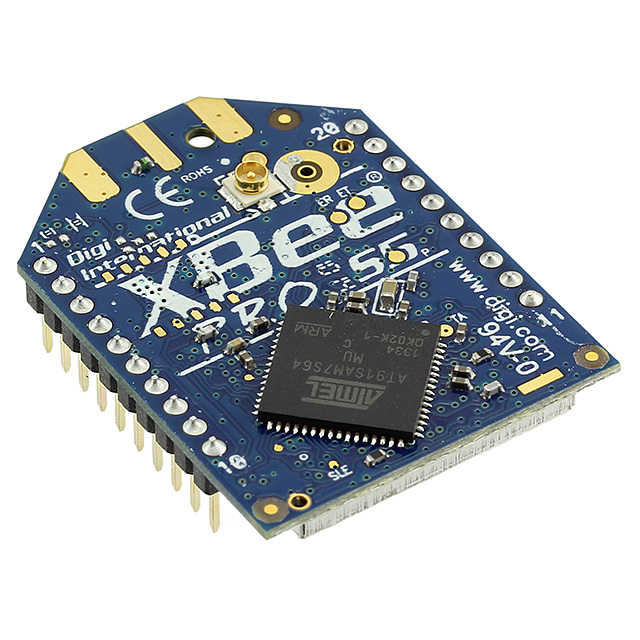

XBP08-DPUIT-024
General ISM < 1GHz Transceiver Module 868MHz Antenna Not Included, U.FL Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | XBP08-DPUIT-024 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 65 mA |
| Current - Transmitting | 500 mA |
| Data Rate | 24 kbps |
| Frequency | 868 MHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 25 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -112 dBm |
| Serial Interfaces | UART |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 3 V |
