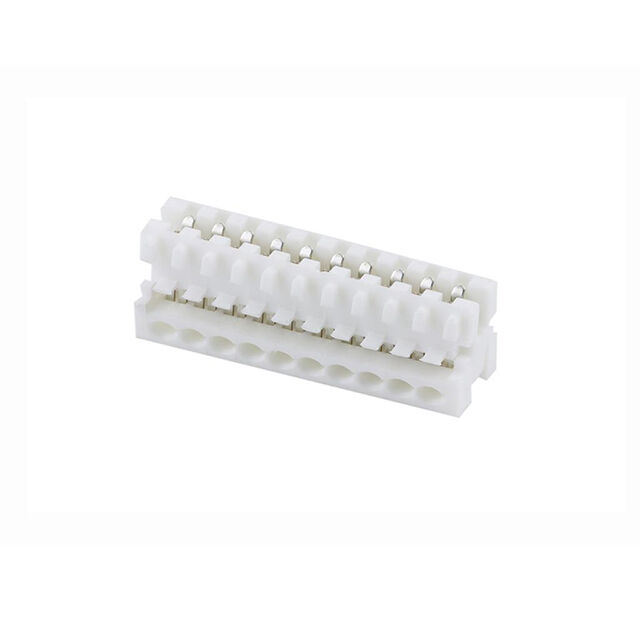

Specification	0917163501

Cable Termination	IDC
Color	Natural
Connector Type	Receptacle
Contact Finish	Tin
Contact Type	Outer Shroud Contact
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	10
Number of Rows	1
Pitch	0.098 in
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	22 AWG
Wire Type	Discrete

091716 Series

Part	Contact Finish	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Number of Positions	Pitch	Contact Type	Color	Mounting Type	Number of Rows	Wire Type	Cable Termination	Connector Type	Contact Finish Thickness	Features
Molex 0917162511	Tin	22 AWG	24 AWG	8	0.098 in	Outer Shroud Contact	Natural	Free Hanging (In-Line) Right Angle	1	Discrete	IDC	Receptacle
Molex 0917165001	Tin	22 AWG	24 AWG	13	0.098 in	Outer Shroud Contact	Natural	Free Hanging (In-Line) Right Angle	1	Discrete	IDC	Receptacle
Molex 0917160530	Tin	22 AWG	24 AWG	4	0.098 in	Outer Shroud Contact	Natural	Free Hanging (In-Line) Right Angle	1	Discrete	IDC	Receptacle
Molex 0917163001	Tin	22 AWG	24 AWG	9	0.098 in	Outer Shroud Contact	Natural	Free Hanging (In-Line) Right Angle	1	Discrete	IDC	Receptacle
Molex 0917161501	Tin	22 AWG	24 AWG	6	0.098 in	Outer Shroud Contact	Natural	Free Hanging (In-Line) Right Angle	1	Discrete	IDC	Receptacle
Molex 0917169001	Tin	22 AWG	24 AWG	2	0.098 in	Outer Shroud Contact	Natural	Free Hanging (In-Line) Right Angle	1	Discrete	IDC	Receptacle	40 µin
Molex 0917163004	Tin	22 AWG	24 AWG	9	0.098 in	Outer Shroud Contact	Natural	Free Hanging (In-Line) Right Angle	1	Discrete	IDC	Receptacle
Molex 0917162503	Tin	22 AWG	24 AWG	8	0.098 in	Outer Shroud Contact	Natural	Free Hanging (In-Line) Right Angle	1	Discrete	IDC	Receptacle
Molex 0917166501	Tin	22 AWG	24 AWG	16	0.098 in	Outer Shroud Contact	Natural	Free Hanging (In-Line) Right Angle	1	Discrete	IDC	Receptacle
Molex 0917161020	Tin	22 AWG	24 AWG	5	0.098 in	Outer Shroud Contact	Natural	Free Hanging (In-Line) Right Angle	1	Discrete	IDC	Receptacle		3 4 Not Loaded Position 2
