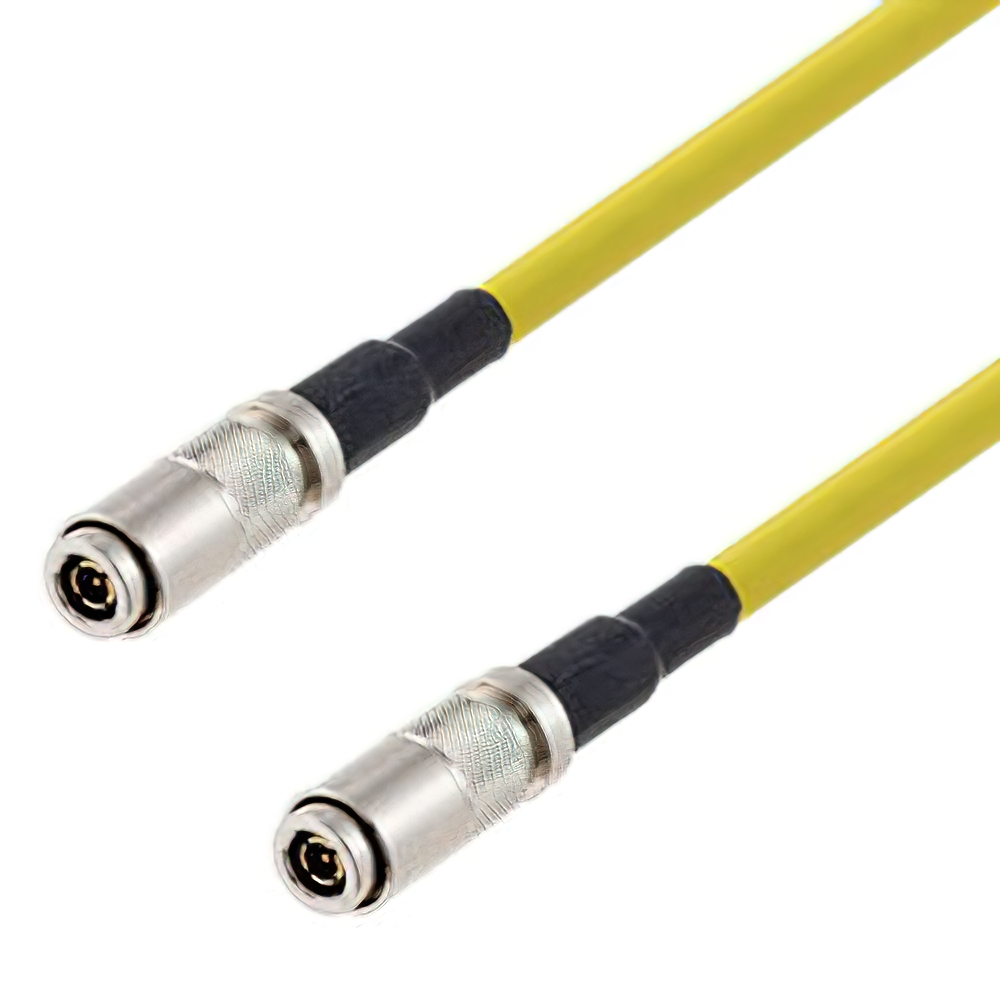

LCCA30859/YW-FT25
ActivePasternack
1.0/2.3 M TO 1.0/2.3 M USING YEL
LCCA30859/YW-FT25
ActivePasternack
1.0/2.3 M TO 1.0/2.3 M USING YEL
Description
General part information
LCCA30859/YW-FT25
Cable Assembly Coaxial BNC to BNC Belden 1855A 300.0" (7.6m) 25.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30859/YW-FT25 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 1855A |
| Color | Yellow |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 300 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | BNC |
