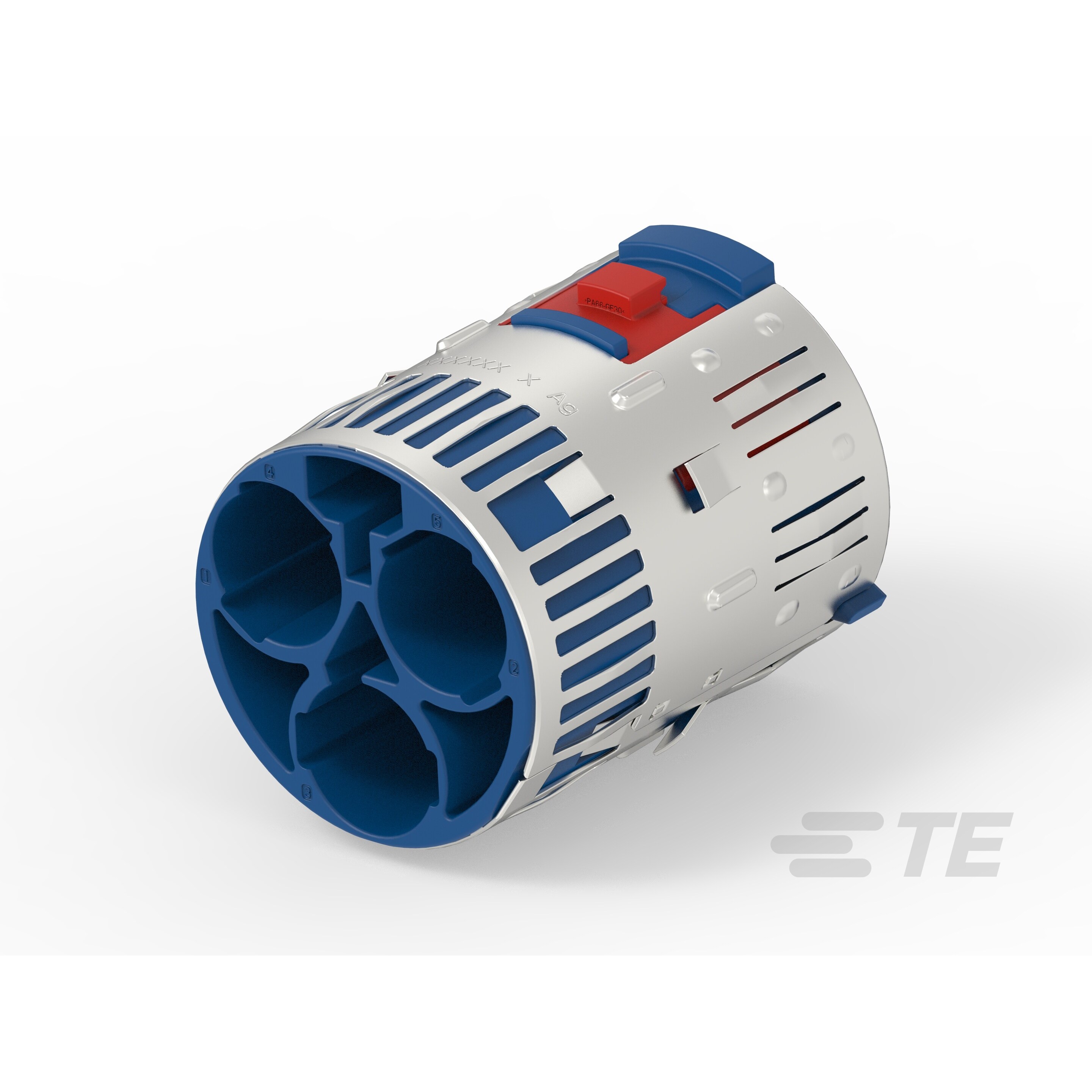

2416070-2
ActiveTE Connectivity AMP Connectors
3POS,DIA 4MM,HDR ASSY,90DEG,COD B
2416070-2
ActiveTE Connectivity AMP Connectors
3POS,DIA 4MM,HDR ASSY,90DEG,COD B
Description
General part information
HVA HD400 Series
3 Position Housing, Housing for Male Terminals, Cable-to-Panel, Sealable, White, Wire & Cable, Power, Panel Mount, HVA HD400
Technical Specifications
Parameters and characteristics for this part
| Specification | 2416070-2 |
|---|---|
| Color | White |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 140 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.157 in |
| Row Spacing | 0.157 in |
