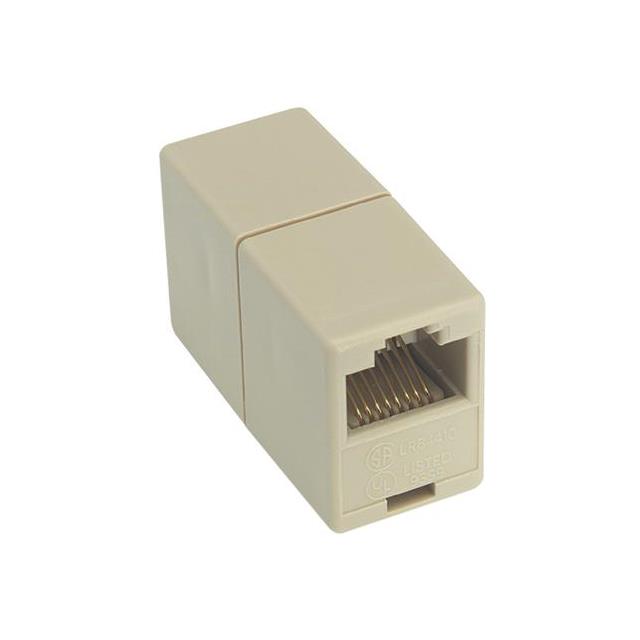

TDG1026-8C
ObsoleteIN-LINE ADAPTER, RJ45, RJ45, ADAPTER, IN-LINE, JACK, 8 POSITIONS
TDG1026-8C
ObsoleteIN-LINE ADAPTER, RJ45, RJ45, ADAPTER, IN-LINE, JACK, 8 POSITIONS
Description
General part information
TDG1026-8C
L-com's affordable inline couplers offer an easy way to extend the length of modular cables. These couplers feature gold plated contacts for optimum performance. Available in straight or cross-wired style, these couplers will work with both telephone and data applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | TDG1026-8C |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Material | Phosphor Bronze |
| Convert From (Adapter End) | 8p8c (RJ45), Jack |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Housing Material | ABS, Acrylonitrile Butadiene Styrene |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Shielding | Unshielded |
| Type | Coupler |
