4-644457-2
ActiveTE Connectivity AMP Connectors
CONN UNSHROUDED HEADER HDR 12 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE BAG
4-644457-2
ActiveTE Connectivity AMP Connectors
CONN UNSHROUDED HEADER HDR 12 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE BAG
Description
General part information
4-644457-2

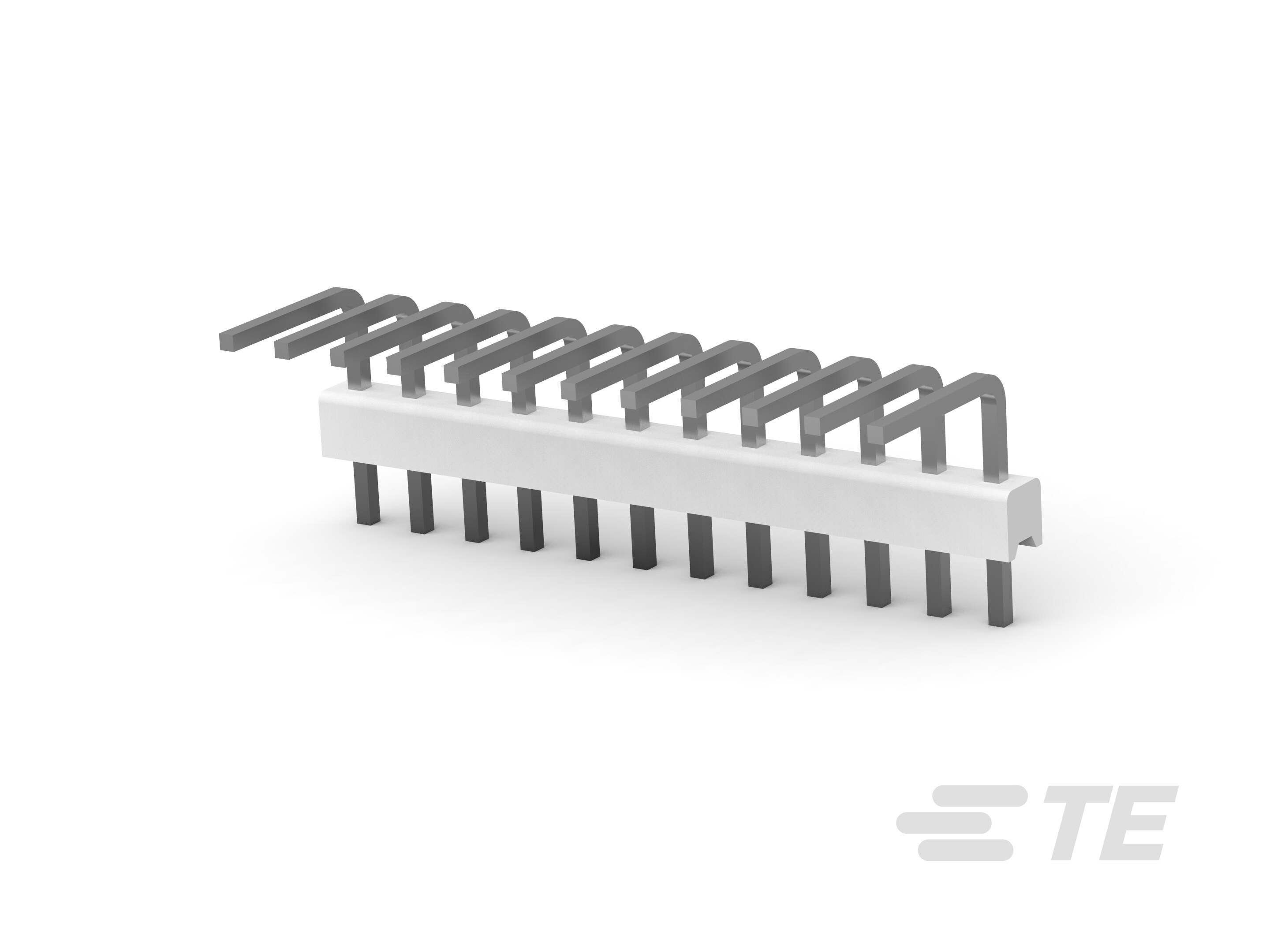

PCB Mount Header, Right Angle, Wire-to-Board, 12 Position, 2.54 mm [.1 in] Centerline, Breakaway, Tin (Sn), Through Hole - Solder, Signal, MTA 100
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-644457-2 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 150 µin |
| Contact Length - Mating | 0.26 in |
| Contact Length - Post | 0.11 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 0 A |
| Current Rating | Varies by Wire Gauge |
| Insulation Color | Natural |
| Insulation Height | 0.1 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.1 in |
| Shrouding | Unshrouded |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 250 V |
