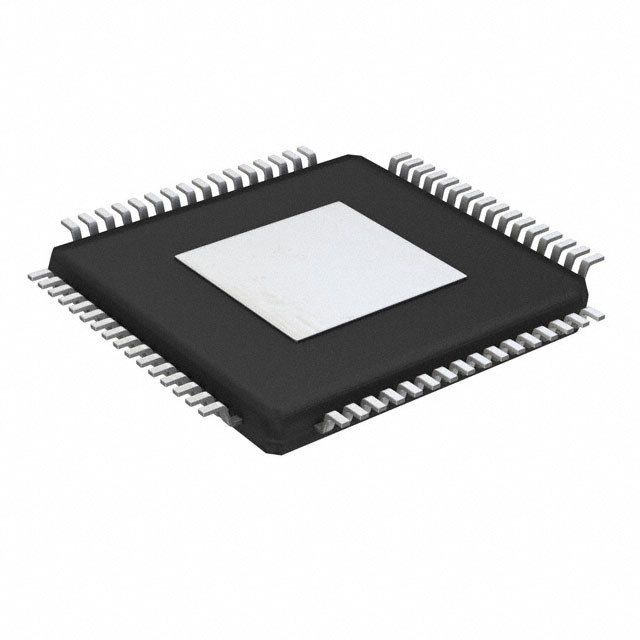

XL208-256-TQ64-C10

Active

XMOS

IC MCU 32BIT ROMLESS 64TQFP

Search across all available documentation for this part.

Active

XMOS

IC MCU 32BIT ROMLESS 64TQFP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XL208-256-TQ64-C10	XL208 Series

Core Processor	XCore	XCore
Core Size [custom]	8-Core	8-Core
Core Size [custom]	32-Bit	32-Bit
Mounting Type	Surface Mount	Surface Mount
Number of I/O	42	42 - 88
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Oscillator Type	External	External
Package / Case	64-TQFP Exposed Pad	128-TQFP Exposed Pad, 64-TQFP Exposed Pad
Program Memory Type	ROMless	ROMless
RAM Size	256 K	128 - 256 K
Speed	1000 MIPS	1000 MIPS
Supplier Device Package	64-TQFP (10x10)	64-TQFP (10x10)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	0.95 V	0.95 V

OTHER SERIES TQFP-128(14X14) MICROCONTROLLERS (MCU/MPU/SOC) ROHS

Part	Speed	Core Size [custom]	Core Size [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Oscillator Type	RAM Size	Program Memory Type	Number of I/O	Core Processor	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Package / Case	Supplier Device Package
XMOS XL208-256-TQ128-I10	1000 MIPS	8-Core	32-Bit	Surface Mount	85 °C	-40 °C	External	256 K	ROMless	88	XCore	3.6 V	0.95 V	128-TQFP Exposed Pad
XMOS XL208-128-TQ128-C10	1000 MIPS	8-Core	32-Bit	Surface Mount	70 °C	0 °C	External	128 K	ROMless	88	XCore	3.6 V	0.95 V	128-TQFP Exposed Pad
XMOS XL208-128-TQ128-I10	1000 MIPS	8-Core	32-Bit	Surface Mount	85 °C	-40 °C	External	128 K	ROMless	88	XCore	3.6 V	0.95 V	128-TQFP Exposed Pad
XMOS XL208-256-TQ64-C10	1000 MIPS	8-Core	32-Bit	Surface Mount	70 °C	0 °C	External	256 K	ROMless	42	XCore	3.6 V	0.95 V	64-TQFP Exposed Pad	64-TQFP (10x10)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	160	$ 10.70

General part information

XCore XL Microcontroller IC 32-Bit 8-Core 1000MIPS ROMless 64-TQFP (10x10)
