WK80922004709J5C00
ActiveVishay Dale
RES 47 OHM 5% 4W AXIAL
WK80922004709J5C00
ActiveVishay Dale
RES 47 OHM 5% 4W AXIAL
Description
General part information
WK80922004709J5C00

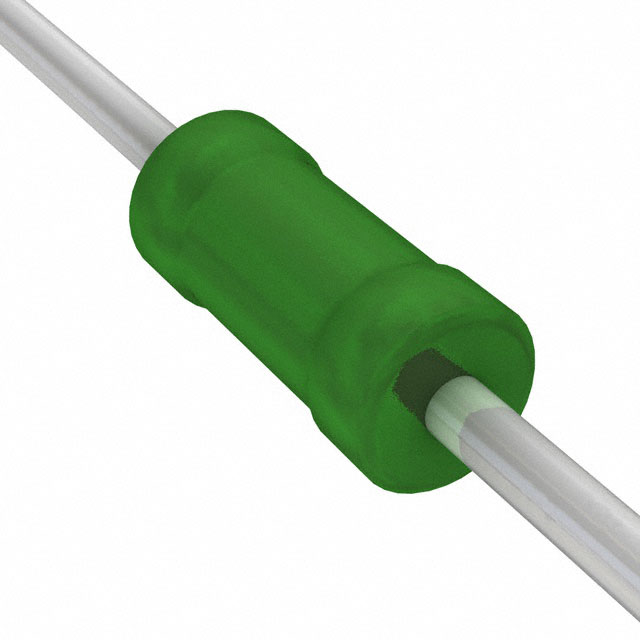

47 Ohms ±5% 4W Through Hole Resistor Axial Pulse Withstanding Metal Oxide Film
Technical Specifications
Parameters and characteristics for this part
| Specification | WK80922004709J5C00 |
|---|---|
| Composition | Metal Oxide Film |
| Features | Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 4 W |
| Resistance | 47 Ohms |
| Size / Dimension Diameter | 0.354 in |
| Size / Dimension Length | 0.787 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
