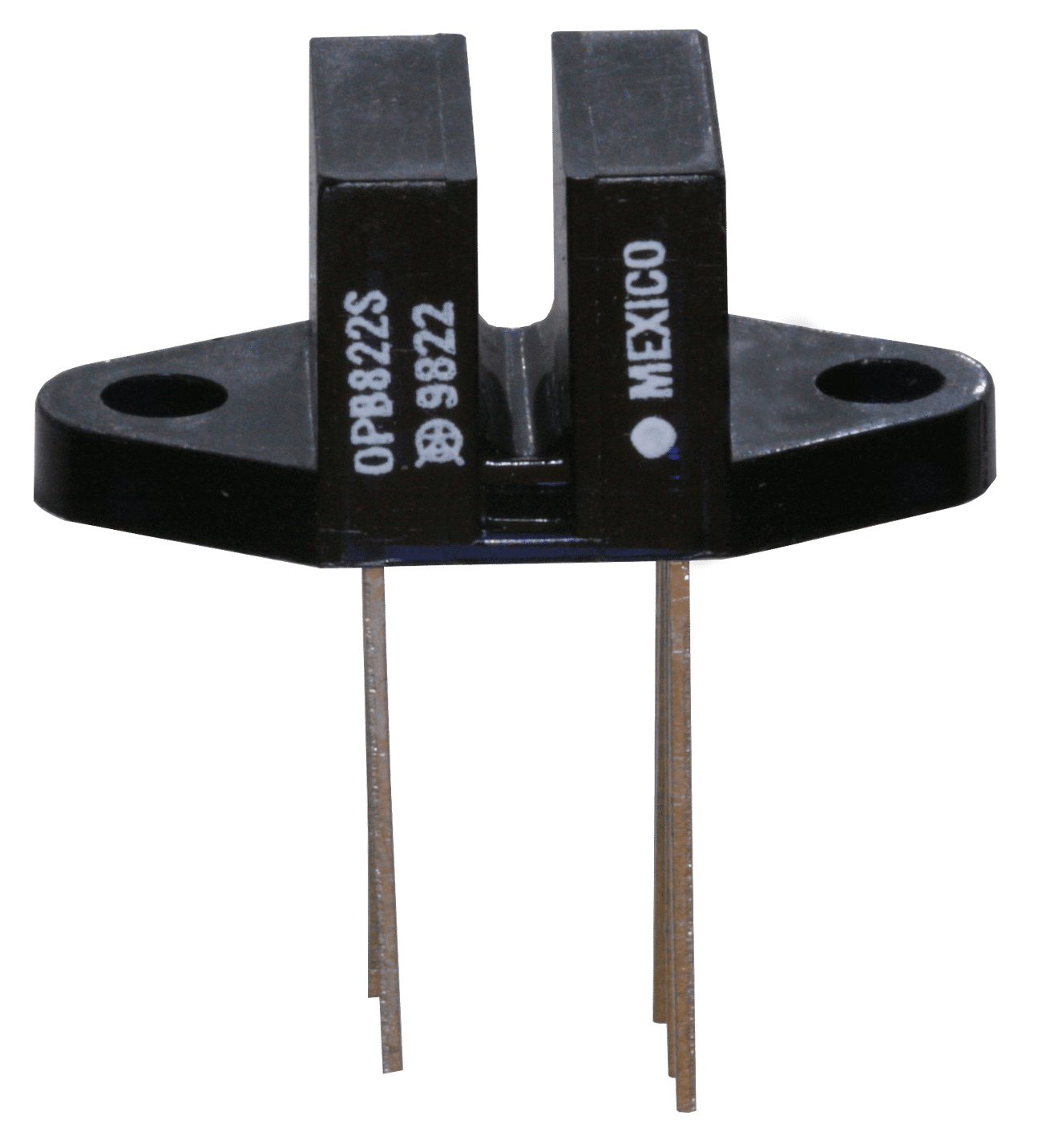

OPB822SD
ActiveTT Electronics/BI
SENSOR OPT SLOT 2 NPN PCB MOUNT
OPB822SD
ActiveTT Electronics/BI
SENSOR OPT SLOT 2 NPN PCB MOUNT
Description
General part information
OPB822SD
SENSOR OPT SLOT 2 NPN PCB MOUNT
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB822SD |
|---|---|
| Current - Collector (Ic) (Max) | 0.03 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | NPN, 2 NPN |
| Output Configuration (Count) | 2 |
| Package / Case | PCB Mount |
| Sensing Distance | 0.09 " |
| Sensing Method | Through-Beam |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Optoelectronics One Pager
App Note: Optoelectronic Sensors for Electric Power Metering
App Note 249: Slotted and Reflective Switches
App Note: Optical Metering in Medical Infusion Pumps
Quality Manual for Juarez Site
RoHs Letter for Juarez Site
Custom Optoelectronic Assemblies Tri-Fold
Supplier Quality Requirements Manual
Conflict Minerals Policy for Juarez Site
App Note 203: Two Channel Optical Interrupters May Be Used for Determining Direction of Rotation, Speed and the Relative Location of a Rotating Shaft
REACH Compliance for Juarez Site
App Note 248: Connecting and Using Infrared Optoelectronics
Juarez ISO 9001
Declaration of Mineral Conflict Free Material for Juarez Site
Optoelectronics for Medical Tri-Fold
Lead Free and RoHs Compliance for Juarez Site
Sensors Product Selection Guide
OPB822 826
RoHs 3 Declaration Form for Juarez Site
App Note 229: Designing Encoder Elements for Two Channel Optical Interrupters
