HVR2500004993FR500
ActiveVishay Dale

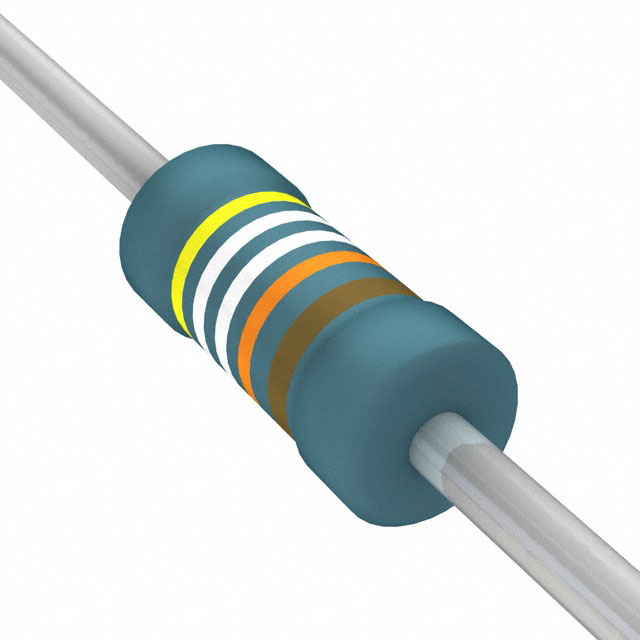

RES 499K OHM 1/4W 1% AXIAL
HVR2500004993FR500
ActiveVishay Dale
RES 499K OHM 1/4W 1% AXIAL
Description
General part information
HVR2500004993FR500
499 kOhms ±1% 0.25W, 1/4W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HVR2500004993FR500 |
|---|---|
| Composition | Metal Film |
| Features | High Voltage, Pulse Withstanding, Safety, Flame Retardant Coating |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 499 kOhm |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.256 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
