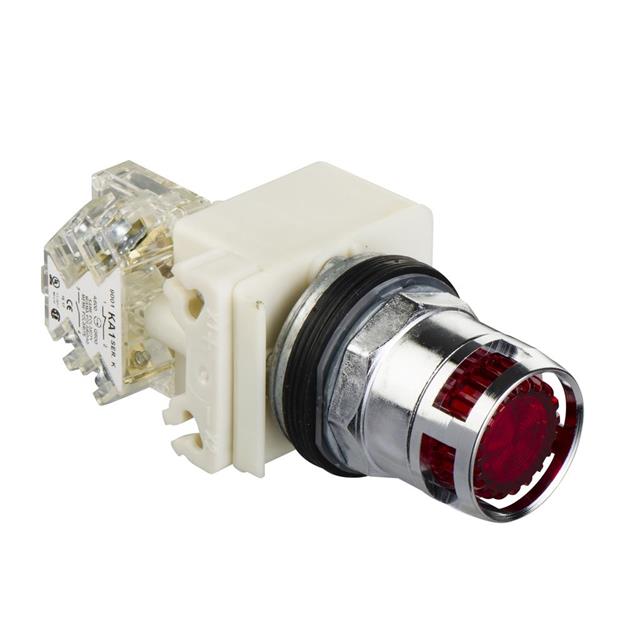

Specification	9001K3L35RH13

Actuator Type	Round, Flush, Button
Circuit	SPDT
Color	Red
Color - Actuator/Cap	Red
Illumination Type	Incandescent
Illumination Voltage (Nominal)	24 V
Ingress Protection Description	Dust Tight, Oil and Water Resistant
Ingress Protection IP Rating	IP66
Mechanical Life (Cycles)	5000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	30 mm
Panel Cutout Shape	Circular
Switch Function	On-On
Termination Style	Screw Terminal
Type	Standard, Illuminated
