PE9291
ActivePasternack

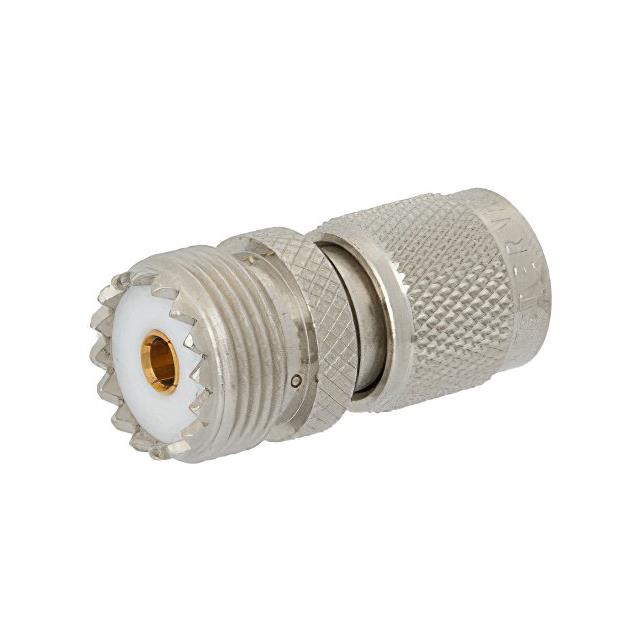

TNC MALE TO UHF FEMALE ADAPTER
PE9291
ActivePasternack
TNC MALE TO UHF FEMALE ADAPTER
Description
General part information
PE9291
Adapter Coaxial Connector TNC Plug, Male Pin To UHF Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9291 |
|---|---|
| Adapter Series | TNC to UHF |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | TNC Plug, Male Pin |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | UHF Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 300 MHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
