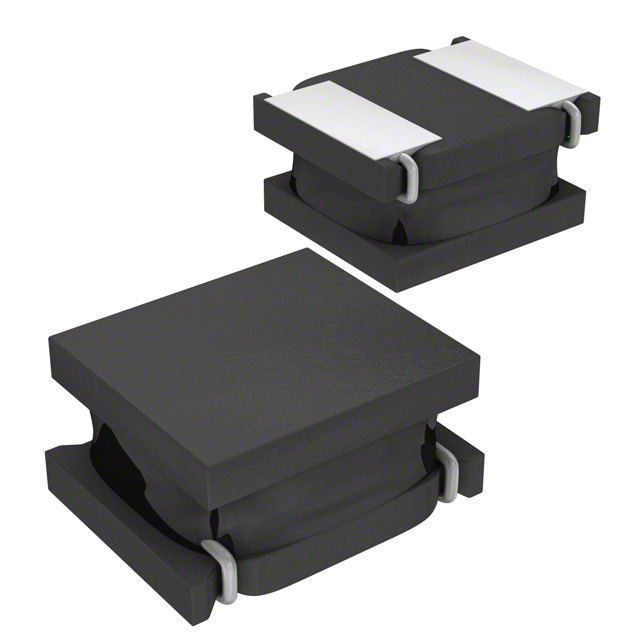

IFSC1008ABER3R3M01
ActiveVishay Dale
FIXED IND 3.3UH 1.35A 0.155OHM
IFSC1008ABER3R3M01
ActiveVishay Dale
FIXED IND 3.3UH 1.35A 0.155OHM
Description
General part information
IFSC1008ABER3R3M01
3.3 µH Shielded Inductor 1.35 A 155mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | IFSC1008ABER3R3M01 |
|---|---|
| Current - Saturation (Isat) | 1.6 A |
| Current Rating | 1.35 A |
| DC Resistance (DCR) (Max) | 155 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Tolerance | 20 % |
