TM1198NL
ActiveTaoglas Limited
XFMR, 10/100 BASE-T, 1PORT, SMD ROHS COMPLIANT: YES

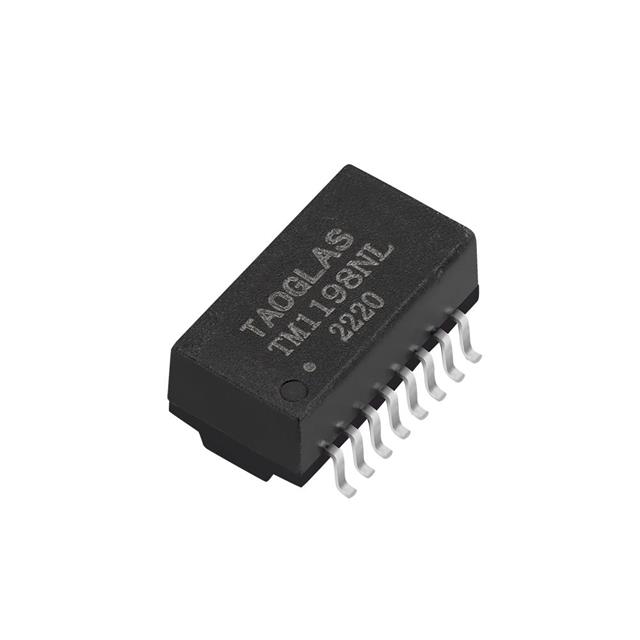

TM1198NL
ActiveTaoglas Limited
XFMR, 10/100 BASE-T, 1PORT, SMD ROHS COMPLIANT: YES
Description
General part information
TM1198NL
350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TM1198NL |
|---|---|
| Height - Seated (Max) | 0.191 in |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.504 in |
| Size / Dimension Width | 0.272 in |
| Transformer Type | LAN 10/100 Base-T |
| Turns Ratio - Primary (Receiver) | 1 CT |
| Turns Ratio - Primary (Transmitter) | 1 CT |
| Turns Ratio - Secondary (Receiver) | 1 |
| Turns Ratio - Secondary (Transmitter) | 1 CT |
| Turns Ratio Mode | Receiver, Transmitter |
