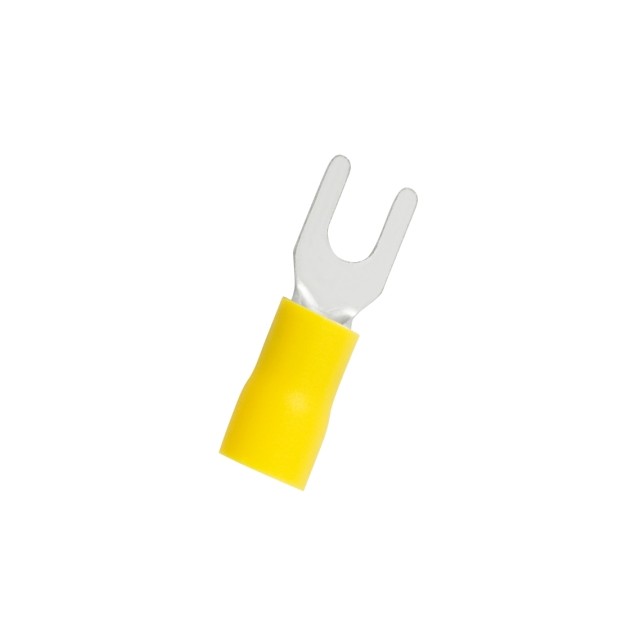

STPVC-1210-10-YL
ActiveKable Kontrol
SPADECONNECTOR 12-10AWG #10STUD
STPVC-1210-10-YL
ActiveKable Kontrol
SPADECONNECTOR 12-10AWG #10STUD
Description
General part information
STPVC-1210-10-YL
SPADECONNECTOR 12-10AWG #10STUD
Technical Specifications
Parameters and characteristics for this part
| Specification | STPVC-1210-10-YL |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | High Temperature |
| Insulation | Insulated |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Flanged |
| Termination | Crimp |
| Wire Gauge (Cross-Sectional Area) (Max) | 6 mm² |
| Wire Gauge (Cross-Sectional Area) (Min) | 4 mm² |
