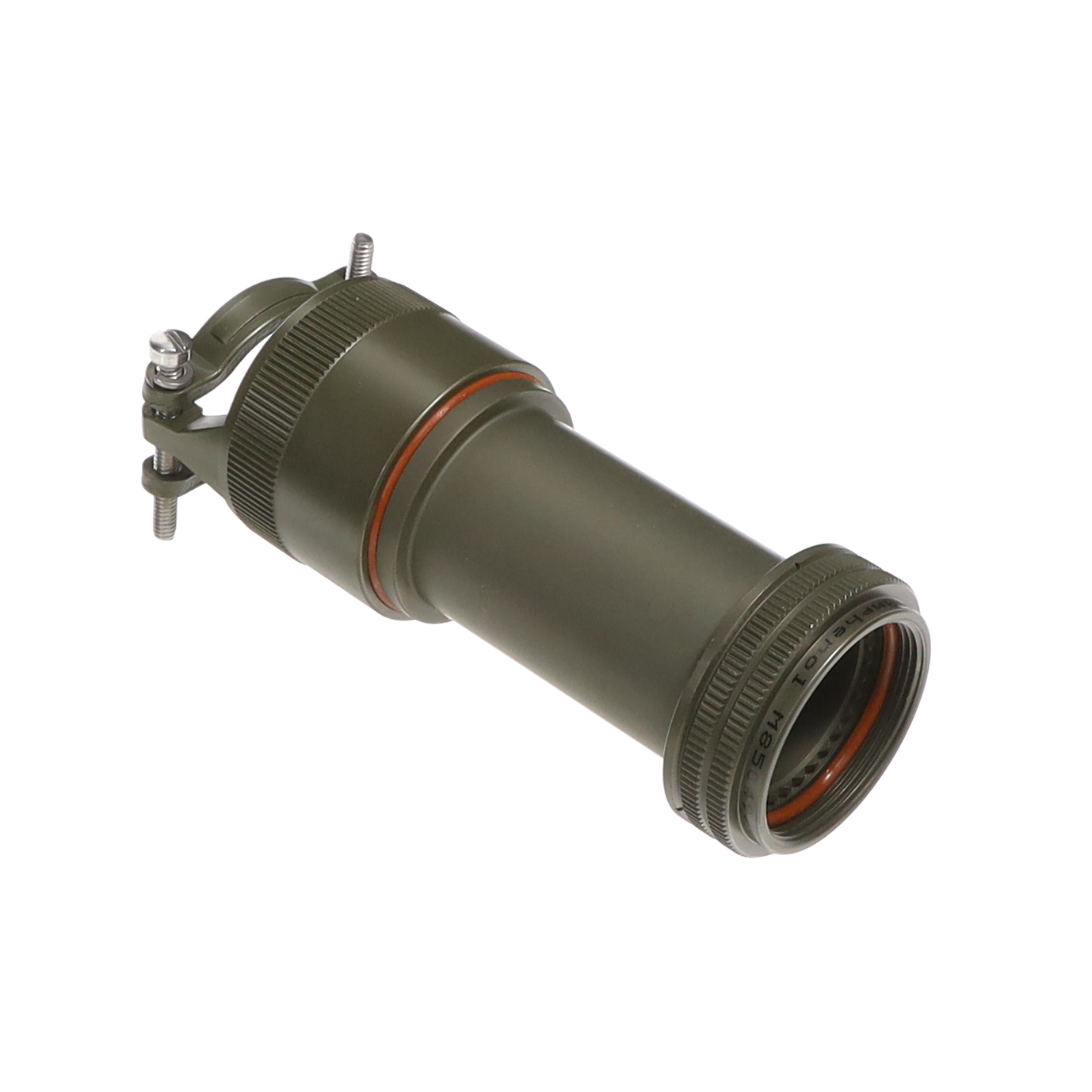

A850491819W07A
ActiveMcGill Microwave Systems
BACKSHELL;ENV-EMI/RFI;CAD
A850491819W07A
ActiveMcGill Microwave Systems
BACKSHELL;ENV-EMI/RFI;CAD
Description
General part information
A850491819W07A
BACKSHELL;ENV-EMI/RFI;CAD
Technical Specifications
Parameters and characteristics for this part
| Specification | A850491819W07A |
|---|---|
| Cable Exit Angle | 180 ° |
| Cable Opening (Max) | 0.88 in |
| Cable Opening (Min) | 0.75 in |
| Color | Olive Drab |
| Diameter - Outside | 1.4 in |
| Features | Clamp Screws |
| Ingress Protection | Environment Resistant |
| Material | Aluminum Alloy |
| Plating | Cadmium |
| Primary Material | Metal |
| Shell Size - Insert | F, 19 |
| Shielding | Shielded |
| Type | Cable Clamp, Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
