Technical Specifications
Parameters and characteristics for this part
| Specification | BK/C519-600MA |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity | 35 A |
| Current Rating | 600 mA |
| DC Cold Resistance | 0.38 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 6.982 |
| Mounting Type | Requires Holder |
| Package / Case | 5mm x 15mm, 2AG |
| Package Diameter | 5 mm |
| Package Length | 5 mm |
| Package Name | 2AG |
| Package Width | 15 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.571 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 2.15 | 1w |
CAD
3D models and CAD resources for this part
Description
General part information

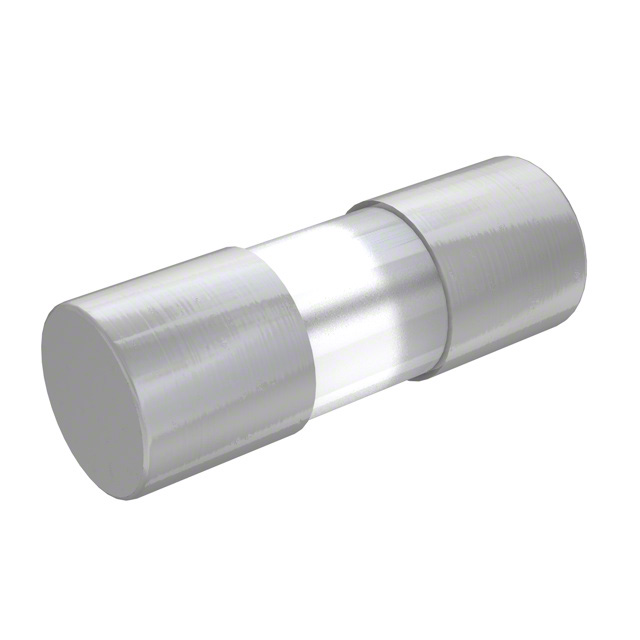

BK/C519-600MA
600 mA 250 V AC DC Fuse Cartridge, Glass Requires Holder 2AG, 5mm x 15mm
