3270427
ActivePhoenix Contact

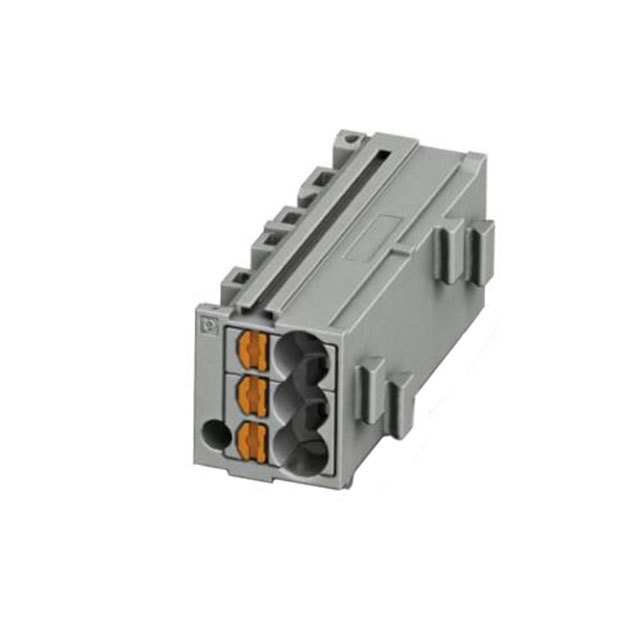

TERM BLK 3POS GRAY
3270427
ActivePhoenix Contact
TERM BLK 3POS GRAY
Description
General part information
3270427
3 Position Terminal Block Gray Marshalling Connector 11.0mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 3270427 |
|---|---|
| Current - IEC | 17.5 A |
| Height (Max) | 1.181 in |
| Housing Color | Gray |
| Length | 0.48 in |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Stripping Length | 10 mm |
| Terminal Width | 11 mm |
| Termination Style | Push In, Spring |
| Type | Marshalling Connector |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
