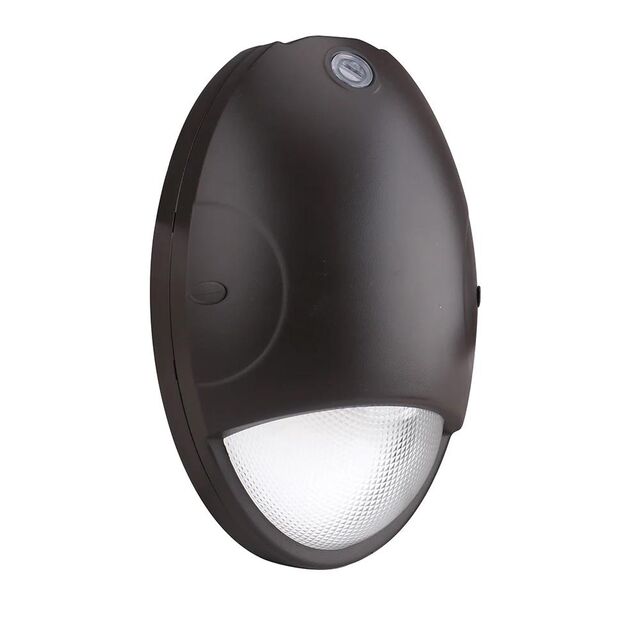

LEAD | LED MINI WALL PACK | 15 W
156205
ActiveBeyond LED Technology
LEAD | LED MINI WALL PACK | 15 W
Description
General part information
156205
LEAD | LED MINI WALL PACK | 15 W
Technical Specifications
Parameters and characteristics for this part
| Specification | 156205 |
|---|---|
| Approval Agency | UL, DLC |
| CCT (K) | 5000 K |
| Features | Dimmable |
| Finish | Bronze |
| Housing Material | Aluminum, Al |
| Ingress Protection | IP65 |
| Length | 10.47 in |
| Lens Type | Flat |
| Luminous Flux | 2010 lm |
| Operating Temperature (Max) | 45 °C |
| Operating Temperature (Min) | -40 °C |
| Power - Rated | 15 W |
| Profile Height | 3.78 in |
| Profile Width | 6.53 in |
| Style | Wall Pack |
| Type | LED |
| Voltage - Supply (Maximum) | 277 V |
| Voltage - Supply (Minimum) | 120 V |
| Wattage | 15 W |
