General part information
Isolated DC/DC Converters - Through Hole
Technical documentation and resources
Parameters and characteristics for this part

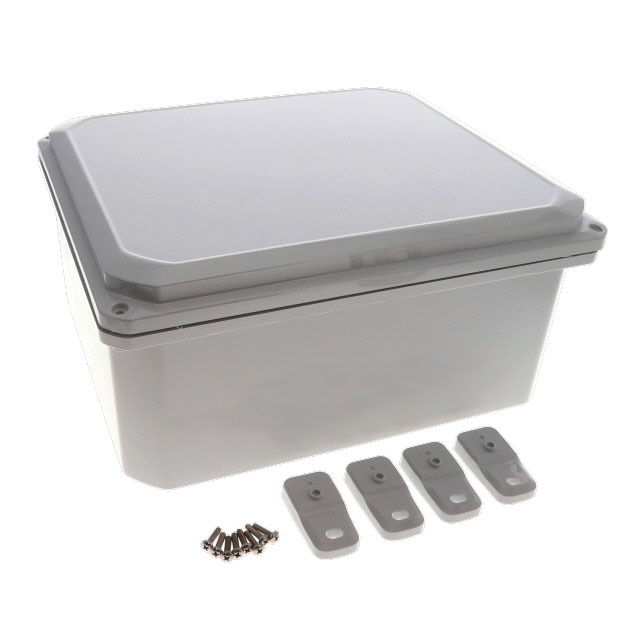

| Specification | DPS-28713 |
|---|---|
| Area (L x W) | 202 in˛ |
| Area (L x W) | 1303 cm˛ |
| Color | Gray |
| Container Type | Enclosure |
| Design | Cover Included |
| Height [z] | 7.22 in |
| Height [z] | 183.39 mm |
| Material | Plastic, Polycarbonate |
| Material Flammability Rating | UL94 5A |
| Size / Dimension [x] | 15.24 in |
| Size / Dimension [x] | 387.1 mm |
| Size / Dimension [y] | 336.3 mm |
| Size / Dimension [y] | 13.24 " |
| Thickness | 0.18 in |
| Thickness | 4.57 mm |
Isolated DC/DC Converters - Through Hole
| Part | Area (L x W) | Area (L x W) | Color | Container Type | Thickness | Thickness | Material Flammability Rating | Height [z] | Height [z] | Design | Material | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BUD INDUSTRIES DPS-28713 | 202 in˛ | 1303 cm˛ | Gray | Enclosure | 0.18 in | 4.57 mm | UL94 5A | 7.22 in | 183.39 mm | Cover Included | Plastic, Polycarbonate | 336.3 mm | 15.24 in | 13.24 " | 387.1 mm |
