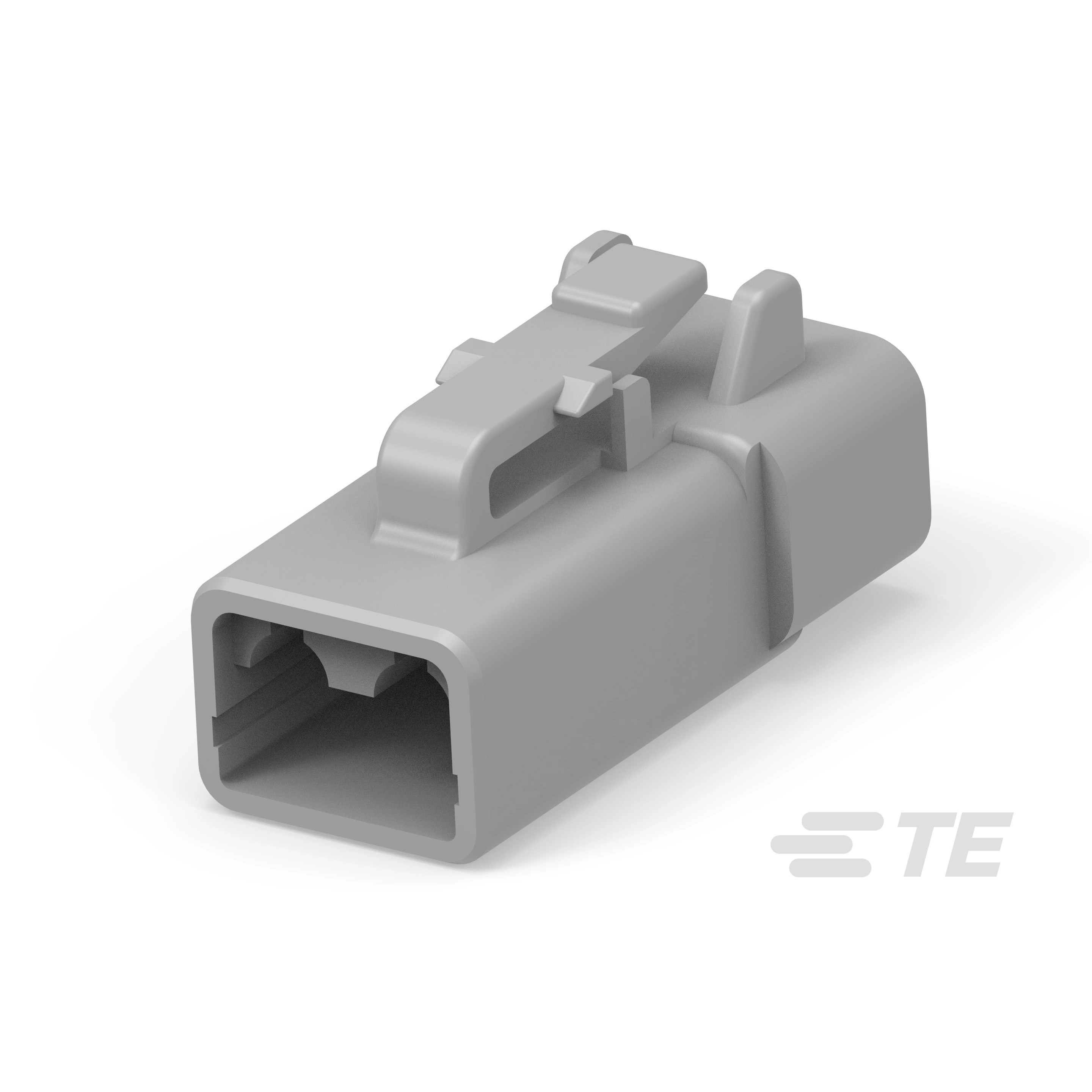

DTP06-2S-C017
ActiveTE Connectivity AMP Connectors
PLG, 2P, GRY, BLOCKED
DTP06-2S-C017
ActiveTE Connectivity AMP Connectors
PLG, 2P, GRY, BLOCKED
Description
General part information
DEUTSCH DT Series
2 Position Housing, Housing for Female Terminals, Wire-to-Wire, 6.7 mm [.264 in] Centerline, Sealable, Gray, Wire & Cable, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | DTP06-2S-C017 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Sealed |
| Insulation Material | Nylon, Glass Filled, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.264 in |
