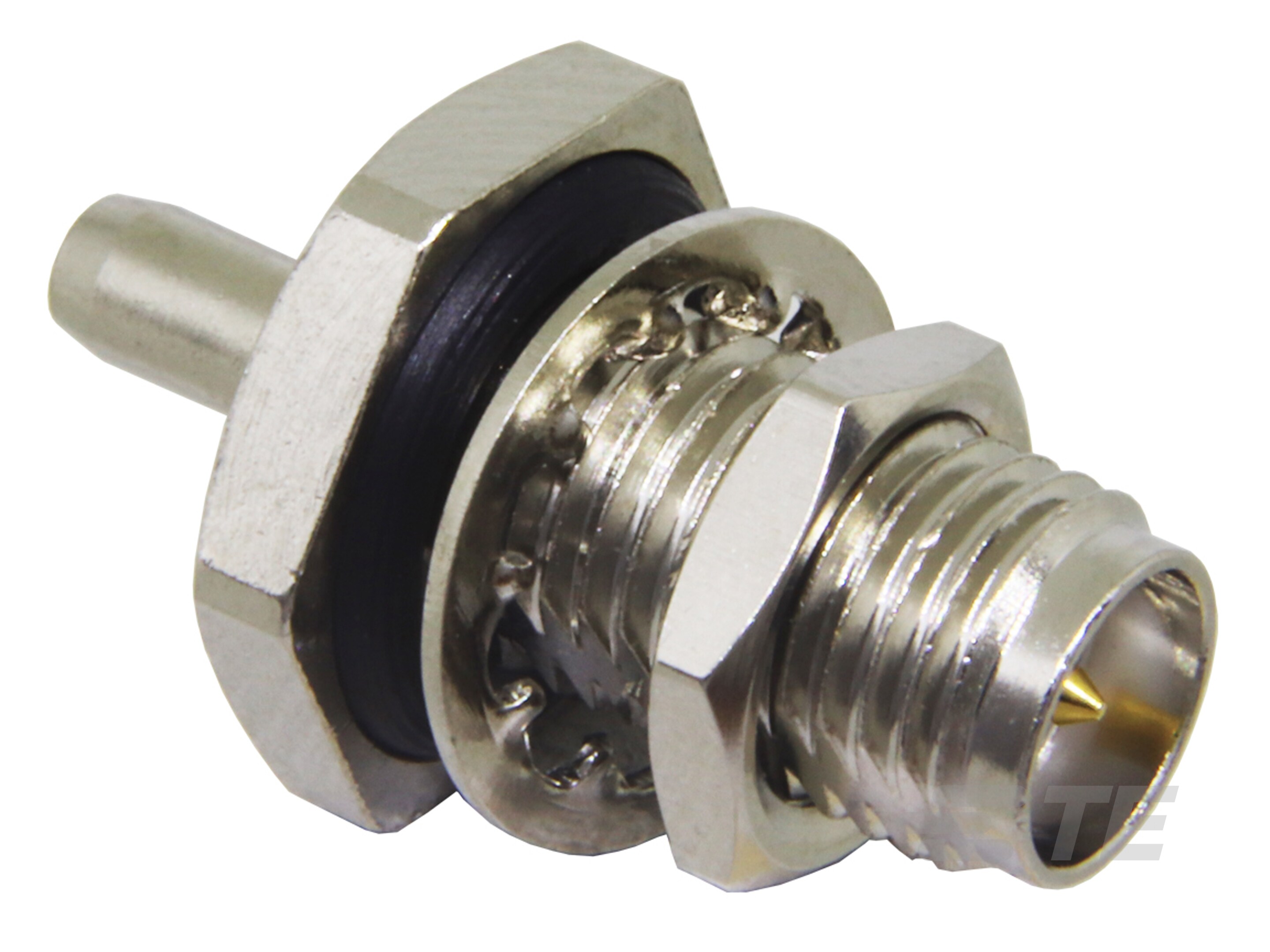

Specification	CONREVSMA014-R178

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Receptacle, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	12.4 GHz
Housing Color	Silver
Impedance	50 Ohm
Includes	Contact, Spacer, Heat Shrink, Nut, Lockwasher, Support, Connector
Includes Total Count	7 pcs
Mating Cycles	500 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp
Voltage Rating	250 V

CONREVSM Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Dielectric Material	Includes	Includes Total Count	Body Material	Mating Cycles	Voltage Rating	Body Finish	Mounting Type	Housing Color	Frequency - Max	Center Contact Material	Fastening Type	Connector Style	Cable Group	Number of Ports	Contact Termination	Connector Type	Impedance	Shield Termination	Mounting Feature
TE Connectivity AMP Connectors CONREVSMA012-R178	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Connector End Cap Ferrule Heat Shrink Insulator	5 pcs	Brass	500 cycles	250 V	Nickel	Free Hanging (In-Line) Right Angle	Silver	12.4 GHz	Beryllium Copper	Threaded	RP-SMA	RG-178	1	Solder	Female Socket Plug	50 Ohm	Crimp
TE Connectivity AMP Connectors CONREVSMA002-SMD	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)			Brass	500 cycles		Nickel	Right Angle Surface Mount	Silver	12.4 GHz	Beryllium Copper	Threaded	RP-SMA		1	Solder	Male Pin Receptacle	50 Ohm	Solder
TE Connectivity AMP Connectors CONREVSMA006.062-G	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Connector Lockwasher Nut	3 pcs	Brass	500 cycles		Gold	Board Edge End Launch Panel Mount	Gold	18 GHz	Brass	Threaded	RP-SMA		1	Solder	Male Pin Receptacle	50 Ohm	Solder	Bulkhead Front Side Nut
TE Connectivity AMP Connectors CONREVSMA005-R178	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Connector Contact Ferrule Heat Shrink Insulator Lockwasher Nuts Sleeve Spacer	10 pcs	Brass	500 cycles	250 V	Nickel	Panel Mount	Silver	12.4 GHz	Brass	Threaded	RP-SMA	RG-178	1	Solder	Male Pin Receptacle	50 Ohm	Crimp	Bulkhead Front Side Nut
TE Connectivity AMP Connectors CONREVSMA012-R58	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Connector End Cap Ferrule Heat Shrink Insulator	5 pcs	Brass	500 cycles	500 V	Nickel	Free Hanging (In-Line) Right Angle	Silver	12.4 GHz	Beryllium Copper	Threaded	RP-SMA	RG-58	1	Solder	Female Socket Plug	50 Ohm	Crimp
TE Connectivity AMP Connectors CONREVSMA011	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Connector Contact Ferrule Heat Shrink	4 pcs	Brass	500 cycles	335 V	Nickel	Free Hanging (In-Line)	Silver	18 GHz	Brass	Threaded	RP-SMA	RG-174	1	Solder	Male Pin Receptacle	50 Ohm	Crimp
TE Connectivity AMP Connectors CONREVSMA003.062-G	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)			Brass	500 cycles		Gold	Board Edge End Launch	Gold	18 GHz	Brass	Threaded	RP-SMA		1	Solder	Male Pin Receptacle	50 Ohm	Solder
TE Connectivity AMP Connectors CONREVSMA015-R178	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Connector Contact Gasket Heat Shrink Lockwasher Nut Spacer Support	8 pcs	Brass	500 cycles	250 V	Nickel	Panel Mount	Silver	12.4 GHz	Beryllium Copper	Threaded	RP-SMA	RG-178	1	Solder	Male Pin Receptacle	50 Ohm	Crimp	Bulkhead Rear Side Nut
TE Connectivity AMP Connectors CONREVSMA003.031	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)			Brass	500 cycles		Nickel	Board Edge End Launch	Silver	18 GHz	Brass	Threaded	RP-SMA		1	Solder	Male Pin Receptacle	50 Ohm	Solder
TE Connectivity AMP Connectors CONREVSMA014-R58	-65 °C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Connector Contact Ferrule Gasket Heat Shrink Lockwasher Nut	7 pcs	Brass	500 cycles	500 V	Nickel	Panel Mount	Silver	12.4 GHz	Brass	Threaded	RP-SMA	RG-58	1	Solder	Male Pin Receptacle	50 Ohm	Crimp	Bulkhead Front Side Nut
