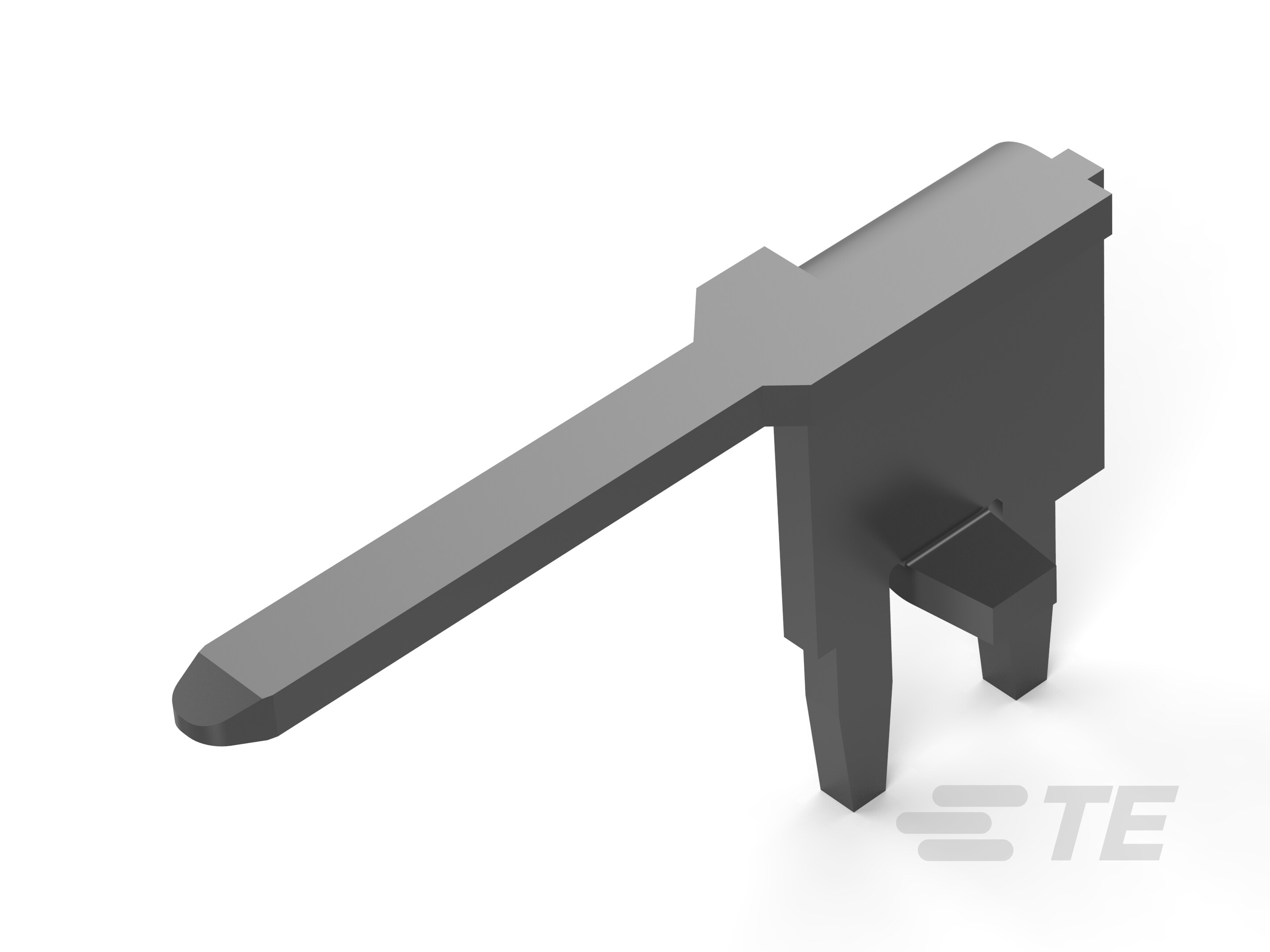

FASTON SPECIAL PCB TAB TPBR-1217088-1

1217088-1

Active
TE Connectivity AMP Connectors

TAB,SPEC AUTO PCB 032 TPBR ROHS COMPLIANT: YES

Find alt
FASTON SPECIAL PCB TAB TPBR-1217088-1

1217088-1

Active
TE Connectivity AMP Connectors

TAB,SPEC AUTO PCB 032 TPBR ROHS COMPLIANT: YES

Find alt

Description

General part information

1217088-1

Tab, 1.52 mm [.06 in] Tab Width, 1.4 mm [.055 in] PCB Hole, Through Hole - Solder, Tin Plating, Reel, PCB Terminals

Technical Specifications

Parameters and characteristics for this part

Specification1217088-1
Contact FinishTin
Contact MaterialBrass
GenderMale
InsulationNon-Insulated
Mounting TypeThrough Hole, Right Angle
Tab Length0.413 in
Tab Thickness0.032 in
Tab Width0.06 in
Terminal Angle90 °
Terminal TypeAngled
TerminationSolder
