40153
Active3M Electronic Specialty

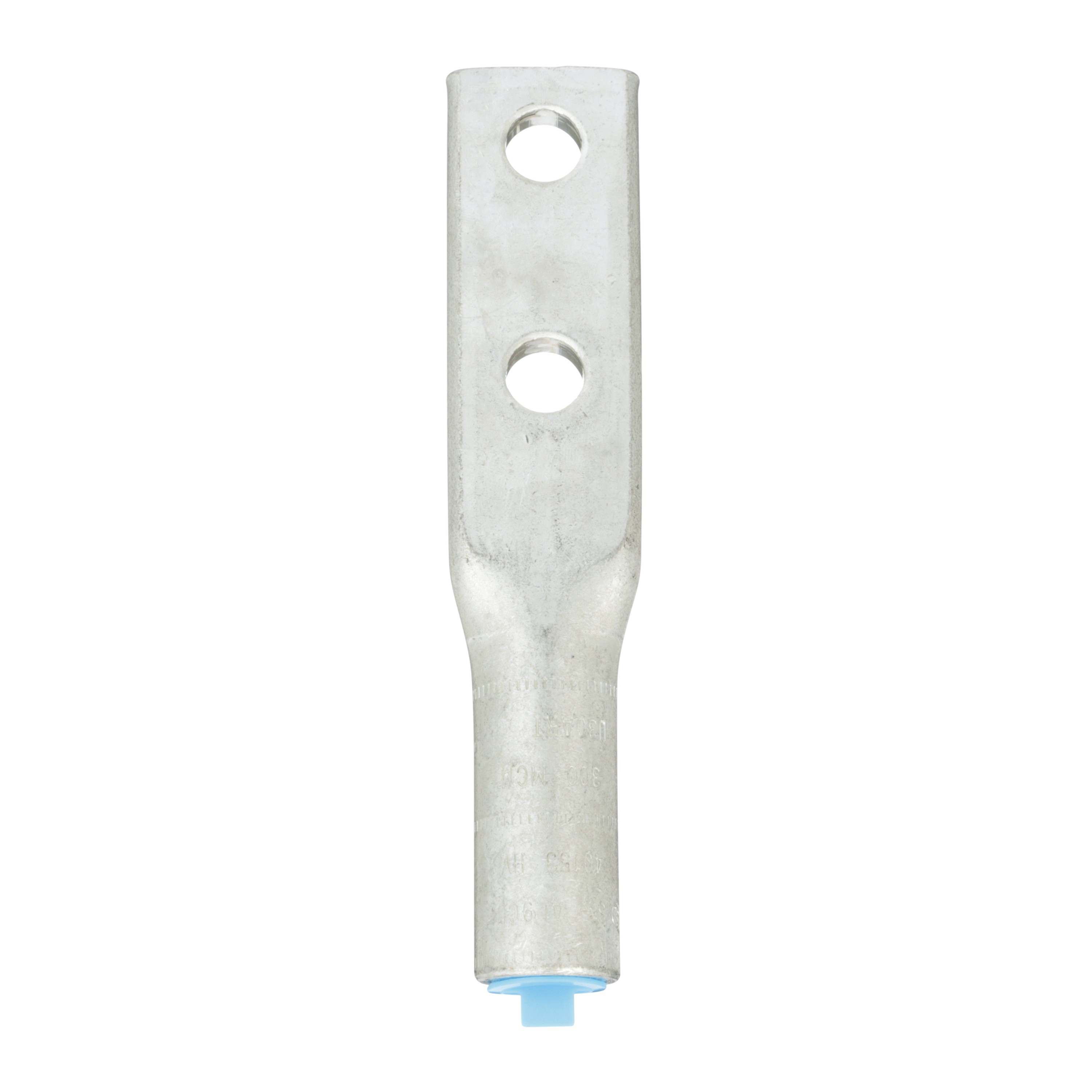

3M(TM) SCOTCHLOK(TM) ALUMINUM TWO HOLE LUG 40153, UP TO 35 KV, 300 KCMIL, DARK BLUE
40153
Active3M Electronic Specialty
3M(TM) SCOTCHLOK(TM) ALUMINUM TWO HOLE LUG 40153, UP TO 35 KV, 300 KCMIL, DARK BLUE
Description
General part information
40153
Terminal Connector Rectangular Lug, Grounding 300MCM (kcmil) 1/2 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | 40153 |
|---|---|
| Color | Blue |
| Contact Material | Aluminum |
| Diameter - Barrel ID | 0.65 in |
| Diameter - Barrel OD | 1.01 in |
| Insulation | Non-Insulated |
| Length - Overall | 6.562 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.5 Stud |
| Terminal Style | Two Stud Holes |
| Terminal Type | Lug, Grounding |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 1.375 in |
| Wire Gauge (MCM) | 300 MCM |
