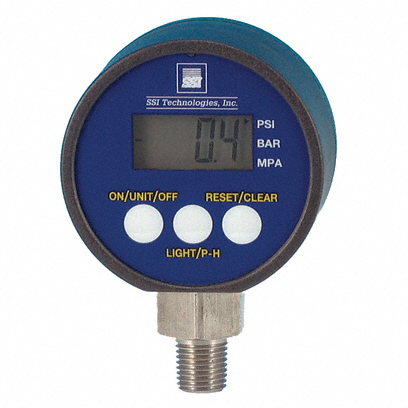

MG1-200-A-9V-R
ActiveMcGill Microwave Systems
DIGITAL GAUGE, 200PSI, 1/4 NPT, LCD
MG1-200-A-9V-R
ActiveMcGill Microwave Systems
DIGITAL GAUGE, 200PSI, 1/4 NPT, LCD
Description
General part information
MG1-200-A-9V-R
DIGITAL GAUGE, 200PSI, 1/4 NPT, LCD
Technical Specifications
Parameters and characteristics for this part
| Specification | MG1-200-A-9V-R |
|---|---|
| Accuracy | 1 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 600 PSI |
| Operating Pressure | 200 PSI |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Output | LCD Display |
| Output Type | Wheatstone Bridge |
| Package / Case | Module Box with Display |
| Package Name | MediaGauge |
| Port Diameter | 0.25 " |
| Port Feature | NPT |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Voltage - Supply | 9 V |
